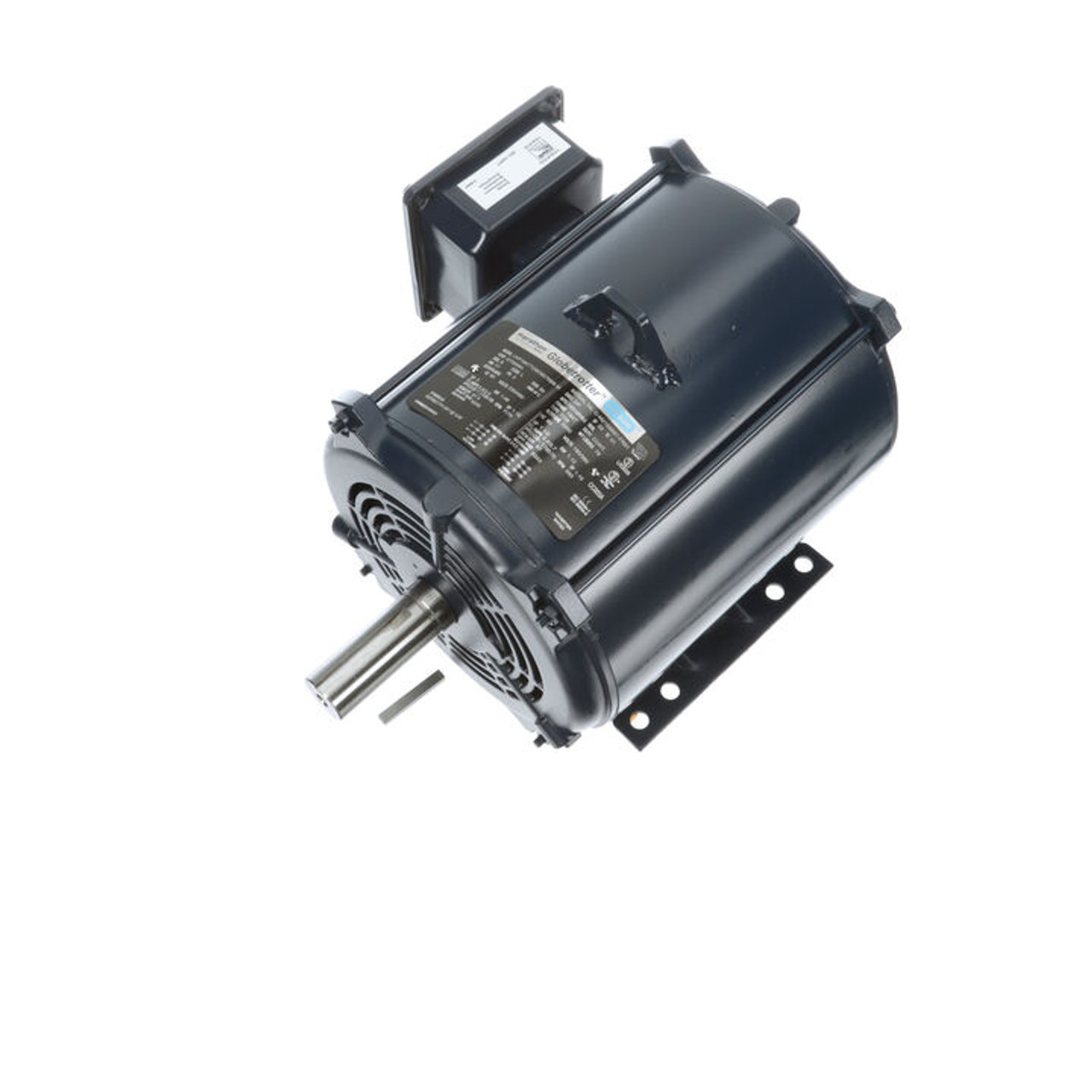

GT0213-P, 5 & 3 HP, 3 Ph, 60 & 50 Hz, 230/460 & 190/380 V, 1800 & 1500 RPM, 184TC Frame, DP, Globetrotter® General Purpose Motor, 184TTDBD6069

GT0213-P, 5 & 3 HP, 3 Ph, 60 & 50 Hz, 230/460 & 190/380 V, 1800 & 1500 RPM, 184TC Frame, DP, Globetrotter® General Purpose Motor, 184TTDBD6069

$671.00
(No reviews yet) Write a Review
SKU:
GT0213-P
Output HP:
5 Hp
Output KW:
3.7 kW
Voltage:
230/460 V
Phase:
3
Speed (RPM):
1765 rpm
Frame Size:
184TC
Mounting:
Rigid Base
Enclosure:
Drip Proof
Product Drawings1:
GT0213-P.pdf
Manufacture:
Marathon
Adding to cart… The item has been added

Nameplate Specifications

Phase: 3 Output HP: 5 & 3 Hp
Output KW: 3.7 & 2.2 kW Voltage: 230/460 & 190/380 V
Speed: 1765 & 1475 rpm Service Factor: 1.15 & 1.15
Frame: 184TC Thermal Protection: No Protection
Efficiency: 89.5 & 89.5 % Ambient Temperature: 40 °C
Frequency: 60 & 50 Hz Current: 13.2/6.6 & 10.4/5.2 A
Power Factor: 80 Duty: Continuous
Insulation Class: F Design Code: A
KVA Code: K Drive End Bearing Size: 6206
Opp Drive End Bearing Size: 6203 Enclosure: Drip Proof
UL: Recognized CSA: Y
CE: Y IP Code: 22
Number of Speeds: 1



!
