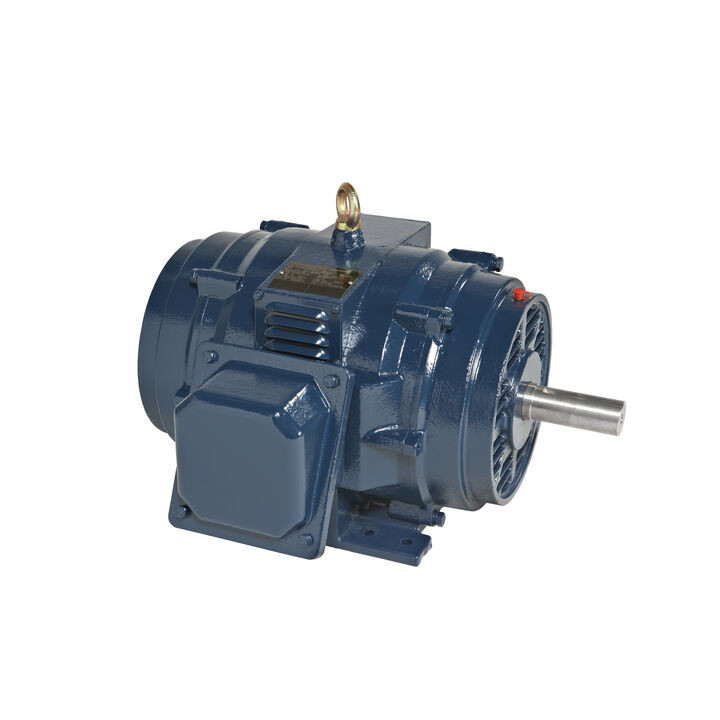

GT0177, 50 HP, 3 Ph, 60 Hz, 575 V, 1800 & 1800 RPM, 326T Frame, DP, Globetrotter퉌¬ General Purpose Motor, 326TTDBD6030

GT0177, 50 HP, 3 Ph, 60 Hz, 575 V, 1800 & 1800 RPM, 326T Frame, DP, Globetrotter퉌¬ General Purpose Motor, 326TTDBD6030

Marathon Electric

$2,745.51
(No reviews yet) Write a Review
SKU:
GT0177
Output HP:
50 Hp
Output KW:
37 kW
Voltage:
575 V
Phase:
3
Speed (RPM):
1780 rpm
Frame Size:
326T
Mounting:
Rigid Base
Enclosure:
Drip Proof
Product Drawings1:
GT0177.pdf
Manufacture:
Marathon
MAP Policy:
Yes
Adding to cart… The item has been added

Add to Cart for Discount

Nameplate Specifications

Phase: 3 Output HP: 50 Hp
Output KW: 37 kW Voltage: 575 V
Speed: 1780 rpm Service Factor: 1.15
Frame: 326T Thermal Protection: No Protection
Efficiency: 94.5 % Ambient Temperature: 40 °C
Frequency: 60 Hz Current: 47 A
Power Factor: 84 Duty: Continuous
Insulation Class: F Design Code: B
KVA Code: G Drive End Bearing Size: 6312
Opp Drive End Bearing Size: 6311 Enclosure: Drip Proof
UL: Recognized CSA: Y
CE: Y IP Code: 22
Number of Speeds: 1



!
