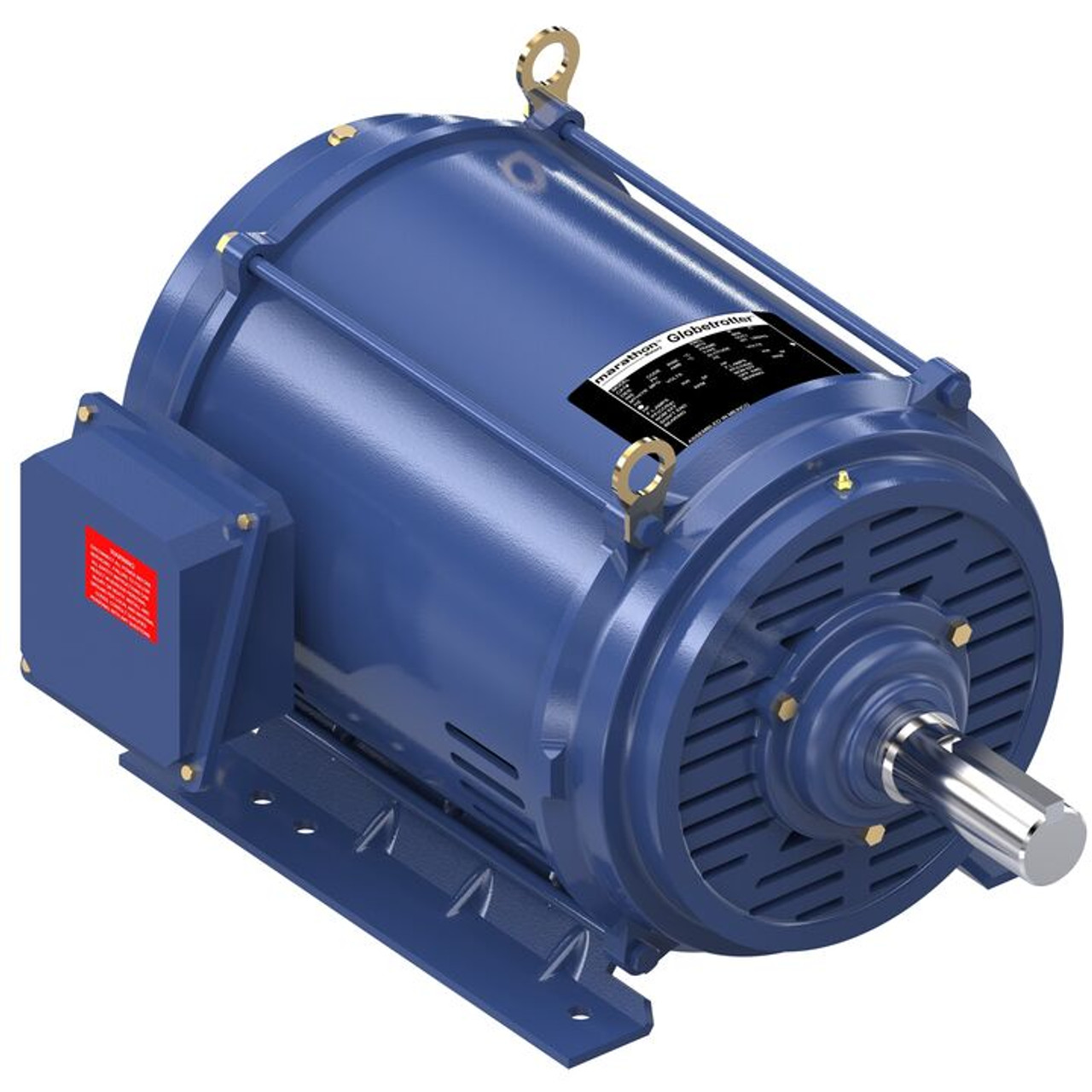

GT0067-P, 30 & 25 HP, 3 Ph, 60 & 50 Hz, 230/460 & 190/380 V, 1800 & 1500 RPM, 286T Frame, DP, Globetrotter® General Purpose Motor, 286TTDBD6070

GT0067-P, 30 & 25 HP, 3 Ph, 60 & 50 Hz, 230/460 & 190/380 V, 1800 & 1500 RPM, 286T Frame, DP, Globetrotter® General Purpose Motor, 286TTDBD6070

$2,278.35
(No reviews yet) Write a Review
SKU:
GT0067-P
Output HP:
30 Hp
Output KW:
22.4 kW
Voltage:
230/460 V
Phase:
3
Speed (RPM):
1775 rpm
Frame Size:
286T
Mounting:
Rigid Base
Enclosure:
Drip Proof
Product Drawings1:
GT0067-P.pdf
Manufacture:
Marathon
Adding to cart… The item has been added

Nameplate Specifications

Phase: 3 Output HP: 30 & 25 Hp
Output KW: 22.4 & 18.7 kW Voltage: 230/460 & 190/380 V
Speed: 1775 & 1475 rpm Service Factor: 1.15 & 1.15
Frame: 286T Thermal Protection: No Protection
Efficiency: 94.1 & 93 % Ambient Temperature: 40 °C
Frequency: 60 & 50 Hz Current: 73/36.5 & 73/36.5 A
Power Factor: 82 Duty: Continuous
Insulation Class: F Design Code: B
KVA Code: G Drive End Bearing Size: 6311
Opp Drive End Bearing Size: 6210 Enclosure: Drip Proof
UL: Recognized CSA: Y
CE: Y IP Code: 22
Number of Speeds: 1



!
