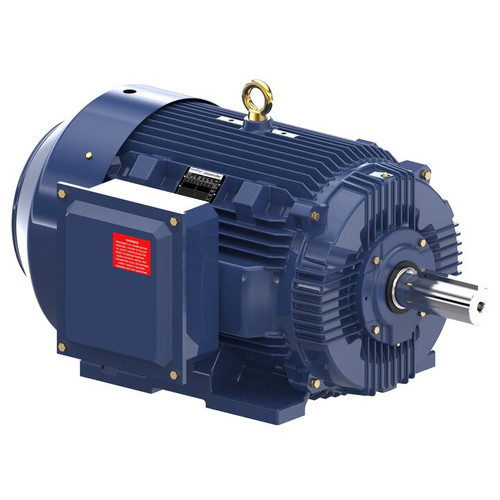

E646B, 100 HP, 3 Ph, 60 Hz, 460 V, 1200 RPM, 444T Frame, TEFC, XRI®-SD Severe Duty Motor, 444TTFCD16581

E646B, 100 HP, 3 Ph, 60 Hz, 460 V, 1200 RPM, 444T Frame, TEFC, XRI®-SD Severe Duty Motor, 444TTFCD16581

$13,836.02
(No reviews yet) Write a Review
SKU:
E646B
Output HP:
100 Hp
Output KW:
75 kW
Voltage:
460 V
Phase:
3
Speed (RPM):
1190 rpm
Frame Size:
444T
Mounting:
Rigid Base
Enclosure:
Totally Enclosed Fan Cooled
Product Drawings1:
E646B.pdf
Manufacture:
Marathon
Adding to cart… The item has been added

Nameplate Specifications

Phase: 3 Output HP: 100 Hp
Output KW: 75 kW Voltage: 460 V
Speed: 1190 rpm Service Factor: 1.15
Frame: 444T Thermal Protection: No Protection
Efficiency: 95 % Ambient Temperature: 40 °C
Frequency: 60 Hz Current: 115 A
Power Factor: 86 Duty: Continuous
Insulation Class: H Design Code: B
KVA Code: G Drive End Bearing Size: 6319
Opp Drive End Bearing Size: 6317 Enclosure: Totally Enclosed Fan Cooled
UL: Listed CSA: Y
CE: Y IP Code: 55
Number of Speeds: 1 Hazardous Location: DIVISION 2 T2B
!
