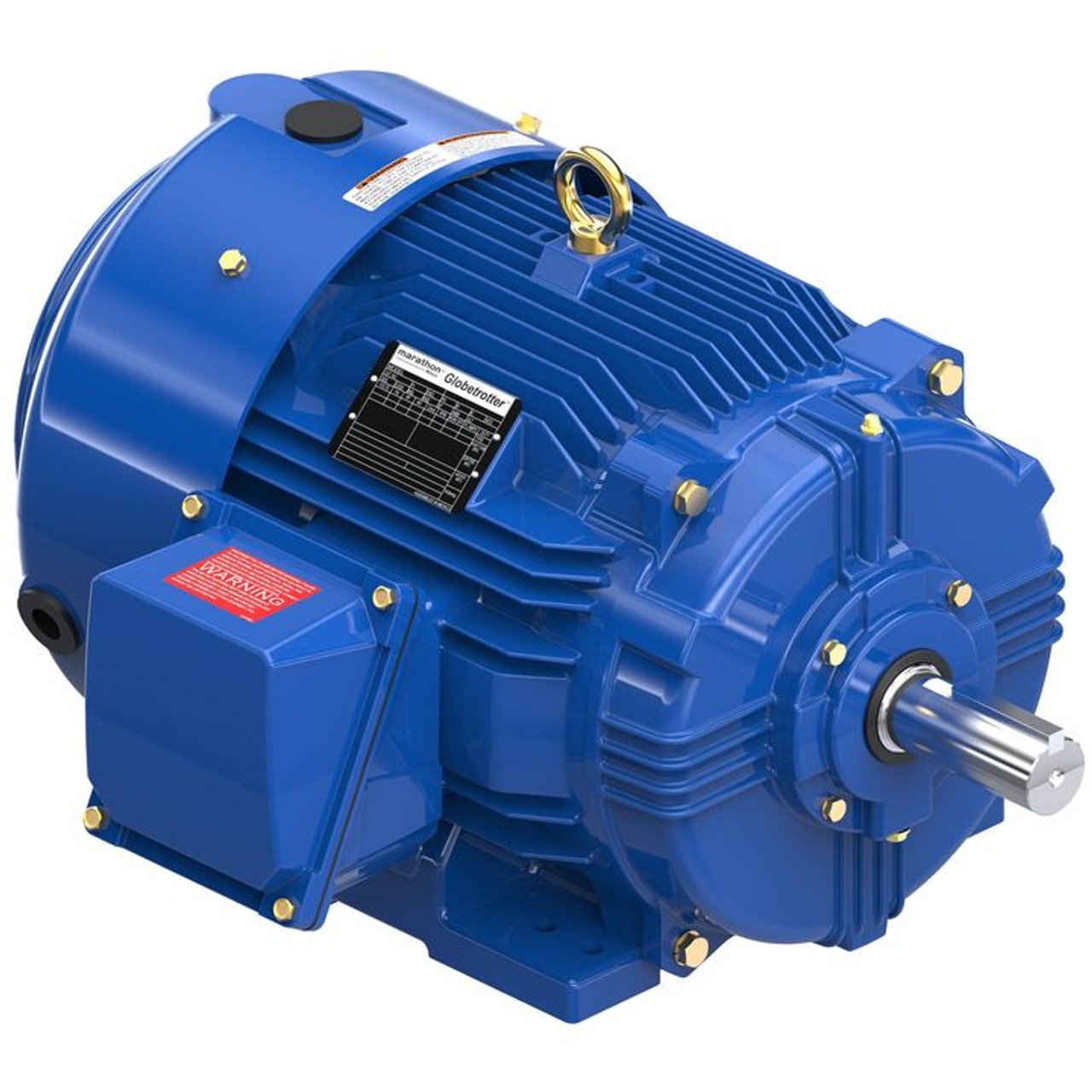

E486A, 20 HP, 3 Ph, 60 Hz, 230/460 V, 1200 RPM, 286T Frame, TEFC, XRI®-SD Severe Duty Motor, 286TTFCD6876

E486A, 20 HP, 3 Ph, 60 Hz, 230/460 V, 1200 RPM, 286T Frame, TEFC, XRI®-SD Severe Duty Motor, 286TTFCD6876

$3,474.56
(No reviews yet) Write a Review
SKU:
E486A
Output HP:
20 Hp
Output KW:
14.9 kW
Voltage:
230/460 V
Phase:
3
Speed (RPM):
1180 rpm
Frame Size:
286T
Mounting:
Rigid Base
Enclosure:
Totally Enclosed Fan Cooled
Product Drawings1:
E486A.pdf
Manufacture:
Marathon
Adding to cart… The item has been added

Nameplate Specifications

Phase: 3 Output HP: 20 Hp
Output KW: 14.9 kW Voltage: 230/460 V
Speed: 1180 rpm Service Factor: 1.15
Frame: 286T Thermal Protection: No Protection
Efficiency: 91.7 % Ambient Temperature: 40 °C
Frequency: 60 Hz Current: 52.0/26.0 A
Power Factor: 79 Duty: Continuous
Insulation Class: H Design Code: B
KVA Code: G Drive End Bearing Size: 6311
Opp Drive End Bearing Size: 6211 Enclosure: Totally Enclosed Fan Cooled
UL: Listed CSA: Y
CE: Y IP Code: 55
Number of Speeds: 1 Hazardous Location: DIVISION 2 T2B
!
