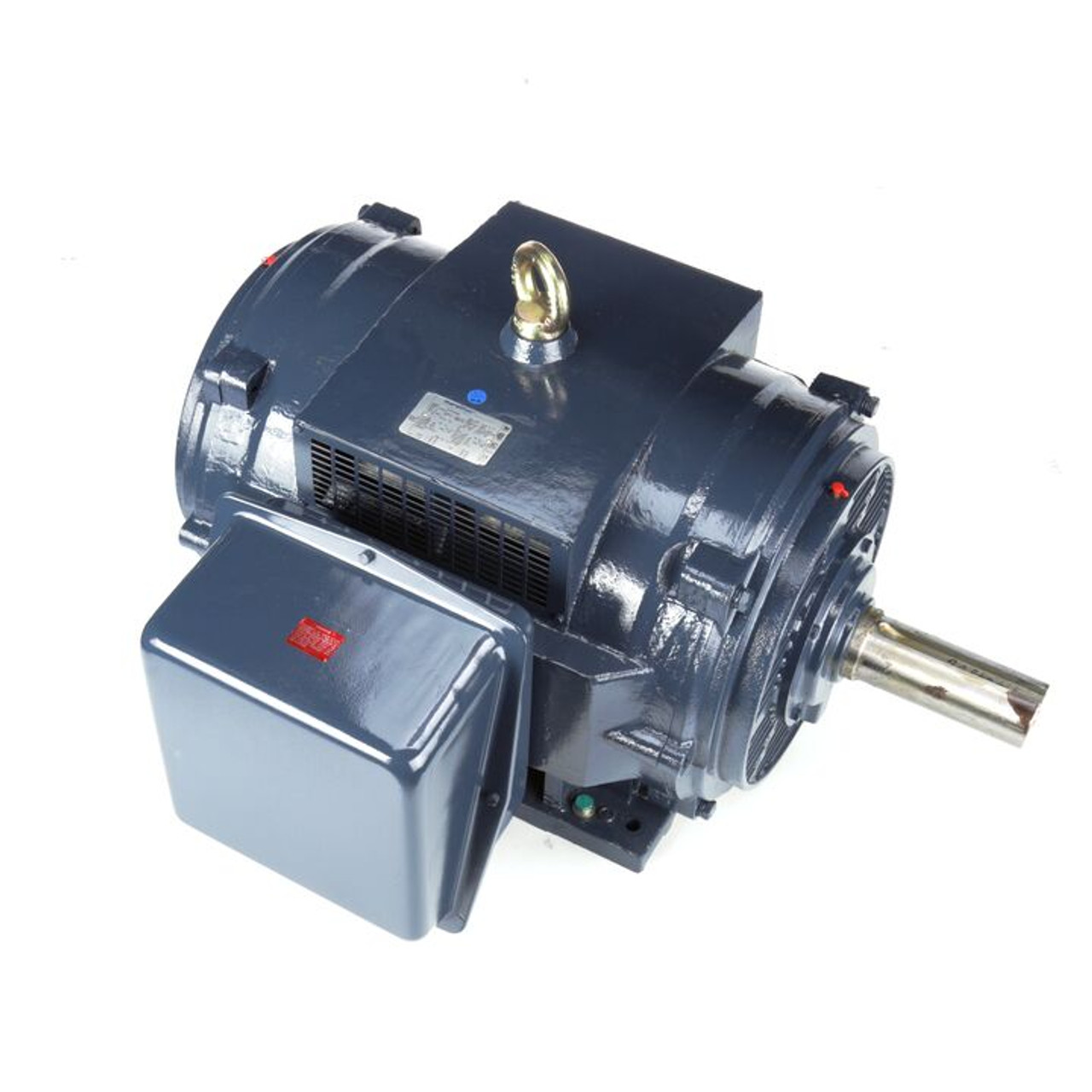

E1353, 150 HP, 3 Ph, 60 Hz, 575 V, 1200 & 1200 RPM, 447T Frame, TEFC, XRI®-SD Severe Duty Motor, 447TTFCD6680

E1353, 150 HP, 3 Ph, 60 Hz, 575 V, 1200 & 1200 RPM, 447T Frame, TEFC, XRI®-SD Severe Duty Motor, 447TTFCD6680

$18,268.89
(No reviews yet) Write a Review
SKU:
E1353
Output HP:
150 Hp
Output KW:
112 kW
Voltage:
575 V
Phase:
3
Speed (RPM):
1190 rpm
Frame Size:
447T
Mounting:
Rigid Base
Enclosure:
Totally Enclosed Fan Cooled
Product Drawings1:
E1253.pdf
Manufacture:
Marathon
Adding to cart… The item has been added

Nameplate Specifications

Phase: 3 Output HP: 150 Hp
Output KW: 112 kW Voltage: 575 V
Speed: 1190 rpm Service Factor: 1.15
Frame: 447T Thermal Protection: No Protection
Efficiency: 95.8 % Ambient Temperature: 40 °C
Frequency: 60 Hz Current: 136 A
Power Factor: 86 Duty: Continuous
Insulation Class: H Design Code: B
KVA Code: G Drive End Bearing Size: NU319
Opp Drive End Bearing Size: 6317 Enclosure: Totally Enclosed Fan Cooled
UL: Listed CSA: Y
CE: Y IP Code: 55
Number of Speeds: 1 Hazardous Location: DIVISION 2 T2B
!
