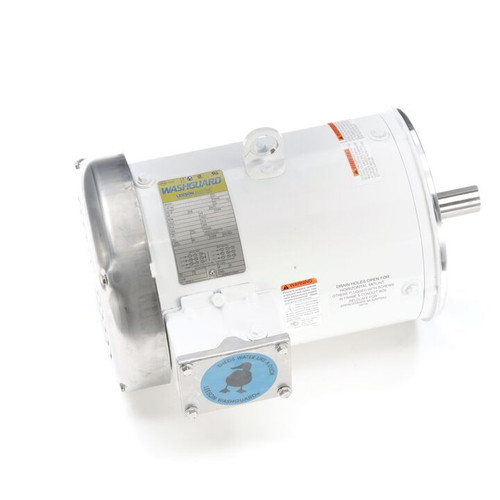

Nameplate Specifications
| Phase: 3 | Output HP: 5 & 3 Hp |
| Output KW: 3.7 & 2.2 kW | Voltage: 230/460 & 190/380 V |
| Speed: 1765 & 1462 rpm | Service Factor: 1.15 & 1.15 |
| Frame: 184TC | Thermal Protection: No Protection |
| Efficiency: 89.5 & 86.5 % | Ambient Temperature: 40 °C |
| Frequency: 60 & 50 Hz | Current: 13.2/6.6 & 10.2/5.1 A |
| Power Factor: 80 | Duty: Continuous |
| Insulation Class: F | Design Code: A |
| KVA Code: K | Drive End Bearing Size: 6206 |
| Opp Drive End Bearing Size: 6205 | Enclosure: Totally Enclosed Fan Cooled |
| UL: Recognized | CSA: Y |
| CE: Y | IP Code: 43 |
| Number of Speeds: 1 |
