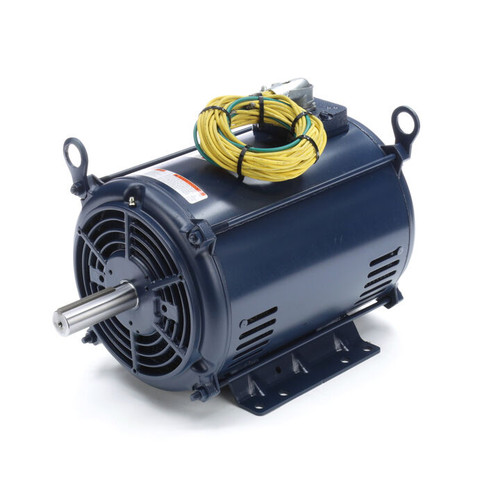

B131850, 7.50 & 10 HP, 3 Ph, 60 & 60 Hz, 230/460 & 230/460 V, 3600 & 3600 RPM, 184TZ Frame, DPAO, Crop Dryer Motor, 184TTDBD6014AA

B131850, 7.50 & 10 HP, 3 Ph, 60 & 60 Hz, 230/460 & 230/460 V, 3600 & 3600 RPM, 184TZ Frame, DPAO, Crop Dryer Motor, 184TTDBD6014AA

$757.01
(No reviews yet) Write a Review
SKU:
B131850
Output HP:
7.5 & 10 Hp
Output KW:
5.6 & 7.5 kW
Voltage:
230/460 & 230/460 V
Phase:
3
Speed (RPM):
3510 & 3510 rpm
Frame Size:
184TZ
Mounting:
Rigid Base
Enclosure:
Drip Proof Air Over
Product Drawings1:
B131850.pdf
Manufacture:
Marathon
Adding to cart… The item has been added

Nameplate Specifications

Phase: 3 Output HP: 7.50 & 10 Hp
Output KW: 5.6 & 7.5 kW Voltage: 230/460 & 230/460 V
Speed: 3510 & 3510 rpm Service Factor: 1.0 & 1.0
Frame: 184TZ Thermal Protection: Thermostat
Efficiency: 88.5 & 86.5 % Ambient Temperature: 40 °C
Frequency: 60 & 60 Hz Current: 17.8/8.9 & 23.6/11.8 A
Power Factor: 89 Duty: Continuous
Insulation Class: F Design Code: B
KVA Code: H Drive End Bearing Size: 6206
Opp Drive End Bearing Size: 6203 Enclosure: Drip Proof Air Over
UL: Recognized CSA: Y
CE: N IP Code: 22
Number of Speeds: 1




!
