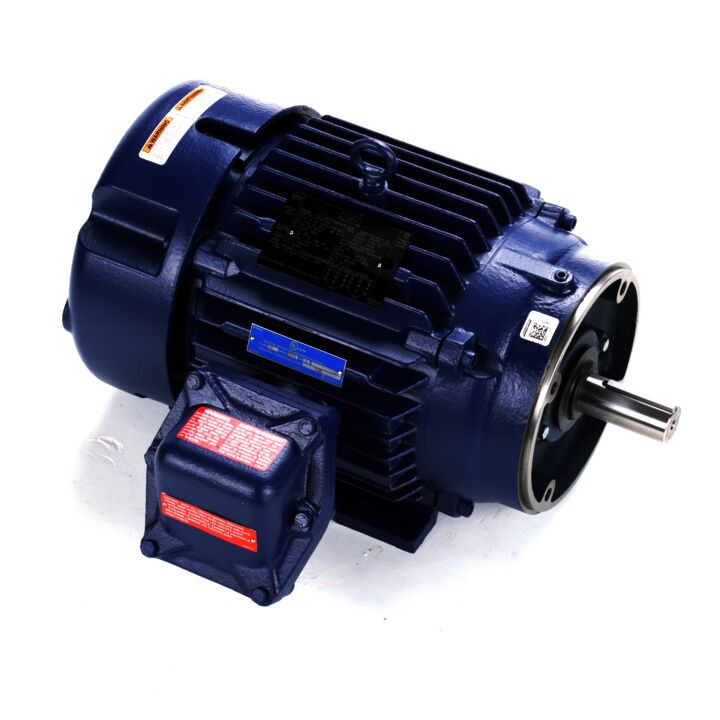

825072.00, 7.50 & 5 HP, 3 Ph, 60 & 50 Hz, 230/460 & 190/380 V, 3600 & 3000 RPM, 213TC Frame, EPFC, Explosion Proof Motor, 213TTGN16507A

825072.00, 7.50 & 5 HP, 3 Ph, 60 & 50 Hz, 230/460 & 190/380 V, 3600 & 3000 RPM, 213TC Frame, EPFC, Explosion Proof Motor, 213TTGN16507A

$1,489.01
(No reviews yet) Write a Review
SKU:
825072
Output HP:
7.5 & 5 Hp
Output KW:
5.6 & 3.7 kW
Voltage:
230/460 & 190/380 V
Phase:
3
Speed (RPM):
3530 & 2950 rpm
Frame Size:
213TC
Mounting:
Rigid Base
Enclosure:
Totally Enclosed Fan Cooled
Product Drawings1:
825072.00.pdf
Manufacture:
Marathon
Adding to cart… The item has been added

Nameplate Specifications

Phase: 3 Output HP: 7.50 & 5 Hp
Output KW: 5.6 & 3.7 kW Voltage: 230/460 & 190/380 V
Speed: 3530 & 2950 rpm Service Factor: 1.15 & 1.15
Frame: 213TC Thermal Protection: Thermostat
Efficiency: 90.2 & 89.5 % Ambient Temperature: 40 °C
Frequency: 60 & 50 Hz Current: 19/9.5 & 15/7.5 A
Power Factor: 86 Duty: Continuous
Insulation Class: F Design Code: B
KVA Code: H Drive End Bearing Size: 6309
Opp Drive End Bearing Size: 6208 Enclosure: Explosion Proof Fan cooled
UL: UL Listed And CSA Certified CSA: Y
CE: N IP Code: 54
Number of Speeds: 1 Hazardous Location: DIV 1 EXP PROOF CL I GR CD CL II GR FG T3B
!
