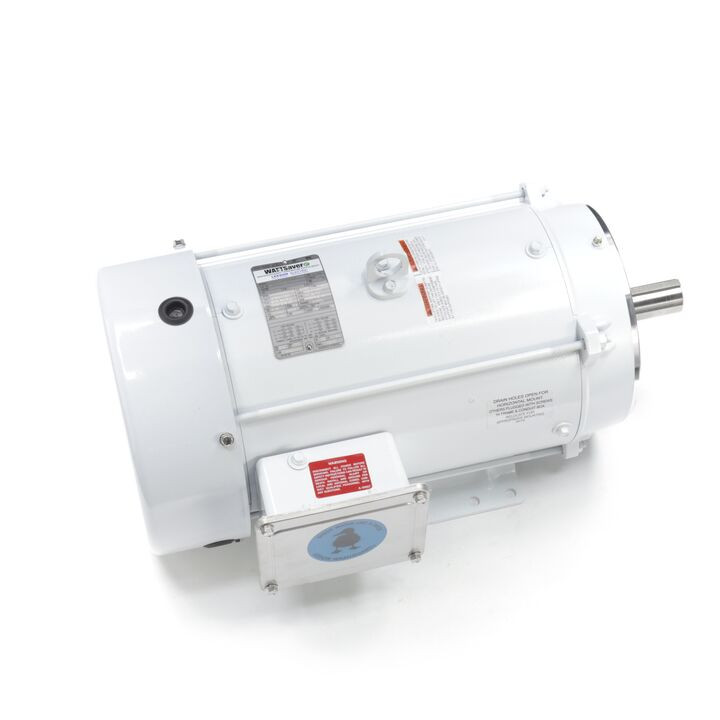

140823.00, 10 & 7.50 HP, 3 Ph, 60 & 50 Hz, 230/460 & 190/380 V, 3600 & 3000 RPM, 215TC Frame, TEFC, General Purpose Motor, C215T34WK9A

140823.00, 10 & 7.50 HP, 3 Ph, 60 & 50 Hz, 230/460 & 190/380 V, 3600 & 3000 RPM, 215TC Frame, TEFC, General Purpose Motor, C215T34WK9A

$1,977.01
(No reviews yet) Write a Review
SKU:
140823
Output HP:
10 & 7.50 Hp
Output KW:
5.6 & 5.6 kW
Voltage:
230/460 & 190/380 V
Phase:
3
Speed (RPM):
3535 & 2940 rpm
Frame Size:
215TC
Mounting:
Rigid Base
Enclosure:
Totally Enclosed Fan Cooled
Product Drawings1:
140823.00.pdf
Manufacture:
Marathon
Adding to cart… The item has been added

Nameplate Specifications

Phase: 3 Output HP: 10 & 7.50 Hp
Output KW: 7.5 & 5.6 kW Voltage: 230/460 & 190/380 V
Speed: 3535 & 2940 rpm Service Factor: 1.15 & 1.15
Frame: 215TC Thermal Protection: No Protection
Efficiency: 91.7 & 90.2 % Ambient Temperature: 40 °C
Frequency: 60 & 50 Hz Current: 23.6/11.8 & 22/11 A
Power Factor: 87 Duty: Continuous
Insulation Class: F Design Code: B
KVA Code: H Drive End Bearing Size: 309
Opp Drive End Bearing Size: 206 Enclosure: Totally Enclosed Fan Cooled
UL: Recognized CSA: Y
CE: Y IP Code: 55
Number of Speeds: 1
!
