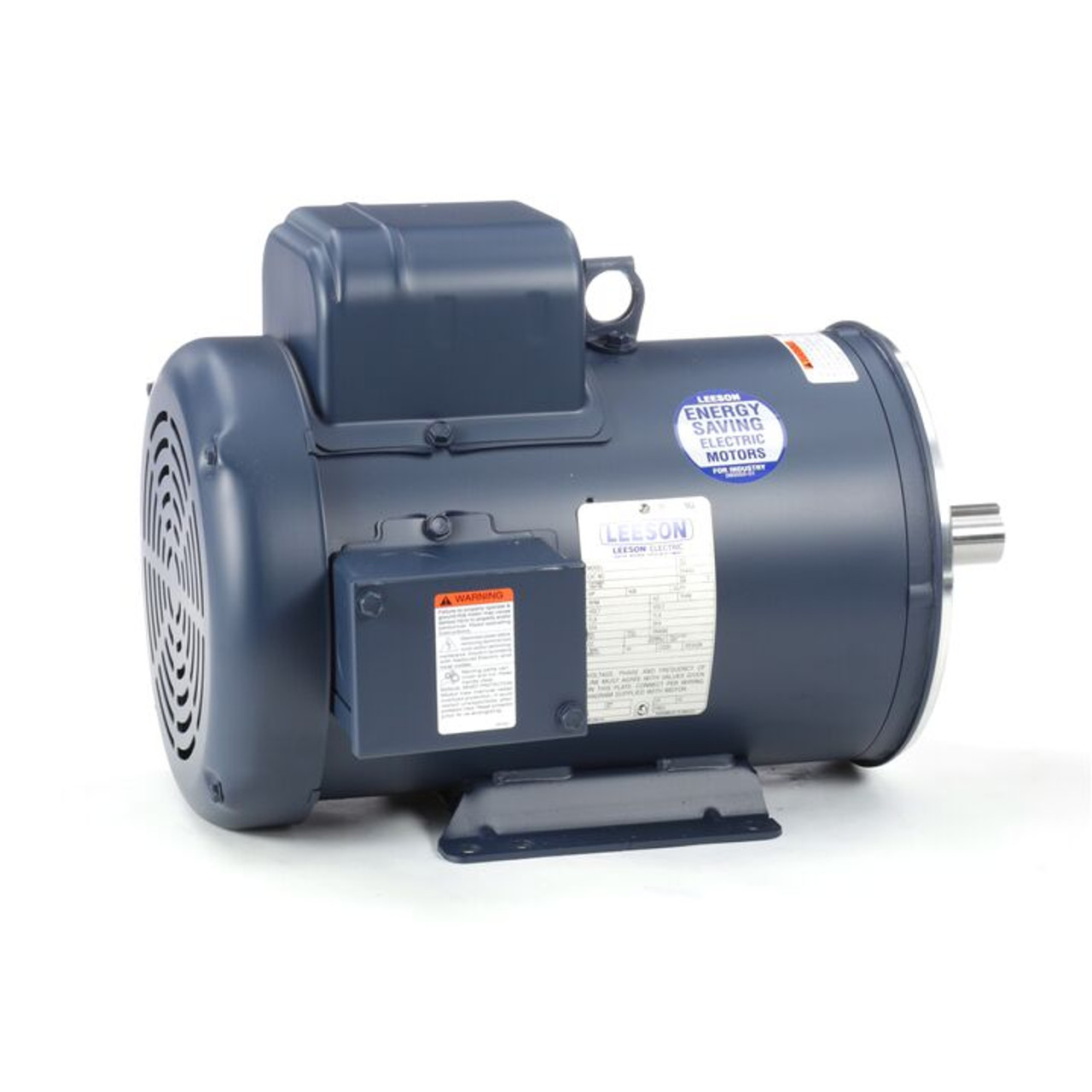

131631.00, 3 HP, 1 Ph, 60 Hz, 115/208-230 V, 1800 RPM, 184TC Frame, TEFC, General Purpose Motor, P184C17FK9C

131631.00, 3 HP, 1 Ph, 60 Hz, 115/208-230 V, 1800 RPM, 184TC Frame, TEFC, General Purpose Motor, P184C17FK9C

$781.41
(No reviews yet) Write a Review
SKU:
131631
Output HP:
3 Hp
Output KW:
2.2 kW
Voltage:
115/208-230 V
Phase:
1
Speed (RPM):
1740 rpm
Frame Size:
184TC
Mounting:
Rigid Base
Enclosure:
Totally Enclosed Fan Cooled
Product Drawings1:
131631.00.pdf
Manufacture:
Marathon
Adding to cart… The item has been added

Nameplate Specifications

Phase: 1 Output HP: 3 Hp
Output KW: 2.2 kW Voltage: 115/208-230 V
Speed: 1740 rpm Service Factor: 1
Frame: 184TC Thermal Protection: Manual
Efficiency: 77 % Ambient Temperature: 40 °C
Frequency: 60 Hz Current: 33.6/18.0-16.8 A
Power Factor: 75 Duty: Continuous
Insulation Class: F Design Code: L
KVA Code: J Drive End Bearing Size: 6206
Opp Drive End Bearing Size: 6205 Enclosure: Totally Enclosed Fan Cooled
UL: Recognized CSA: Y
CE: N IP Code: 43
Number of Speeds: 1
!
