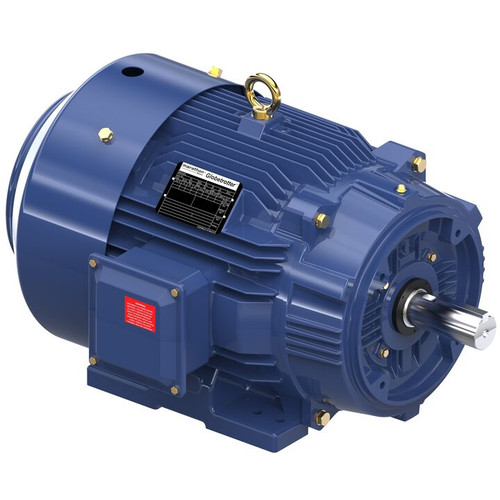

Product Description
Nameplate Specifications
| Phase: 3 | Output HP: 25 & 20 Hp |
| Output KW: 18.7 & 14.9 kW | Voltage: 230/460 & 190/380 V |
| Speed: 3555 & 2955 rpm | Service Factor: 1.15 & 1.15 |
| Frame: 284TC | Thermal Protection: No Protection |
| Efficiency: 91.7 & 91.2 % | Ambient Temperature: 40 °C |
| Frequency: 60 & 50 Hz | Current: 60/30 & 58/29 A |
| Power Factor: 86 | Duty: Continuous |
| Insulation Class: F | Design Code: B |
| KVA Code: G | Drive End Bearing Size: 6311 |
| Opp Drive End Bearing Size: 6211 | Enclosure: Totally Enclosed Fan Cooled |
| UL: Listed | CSA: Y |
| CE: Y | IP Code: 55 |
| Number of Speeds: 1 | Hazardous Location: DIVISION 2 T2B |
Product Videos
Custom Field
Output HP 25 Hp
Output KW 18.7 kW
Voltage 230/460 V
Phase 3
Speed (RPM) 3555 rpm
Frame Size 284TC
Mounting Rigid Base
Enclosure Totally Enclosed Fan Cooled
Product Drawings1 GT12127.pdf
