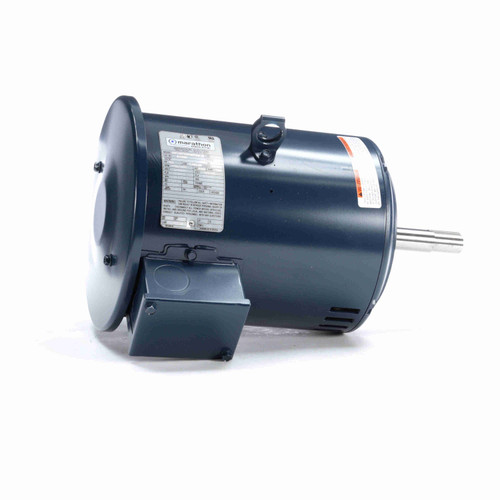

Product Description
Nameplate Specifications
| Phase: | 3 | Output HP: | 7.50 & 5 Hp |
| Output KW: | 5.6 & 3.7 kW | Voltage: | 230/460 & 190/380 V |
| Speed: | 3490 & 2905 rpm | Service Factor: | 1.15 & 1.15 |
| Frame: | 184JMV | Enclosure: | Drip Proof |
| Thermal Protection: | No Protection | Efficiency: | 88.5 & 87.5 % |
| Ambient Temperature: | 40 °C | Frequency: | 60 & 50 Hz |
| Current: | 17.8/8.9 & 15/7.5 A | Power Factor: | 89 |
| Duty: | Continuous | Insulation Class: | F |
| Design Code: | A | KVA Code: | J |
| Drive End Bearing Size: | 6207 | Opp Drive End Bearing Size: | 6205 |
| UL: | Recognized | CSA: | Y |
| CE: | Y | IP Code: | 22 |
| Number of Speeds: | 1 |
Product Videos
Custom Field
Output HP 7.50 & 5 Hp
Output KW 5.6 & 3.7 kW
Voltage 230/460 & 190/380 V
Phase 3
Speed (RPM) 3490 & 2905 rpm
Frame Size 184JMV
Mounting C-Face Footless
Enclosure Drip Proof
Product Drawings1 E163B.pdf
