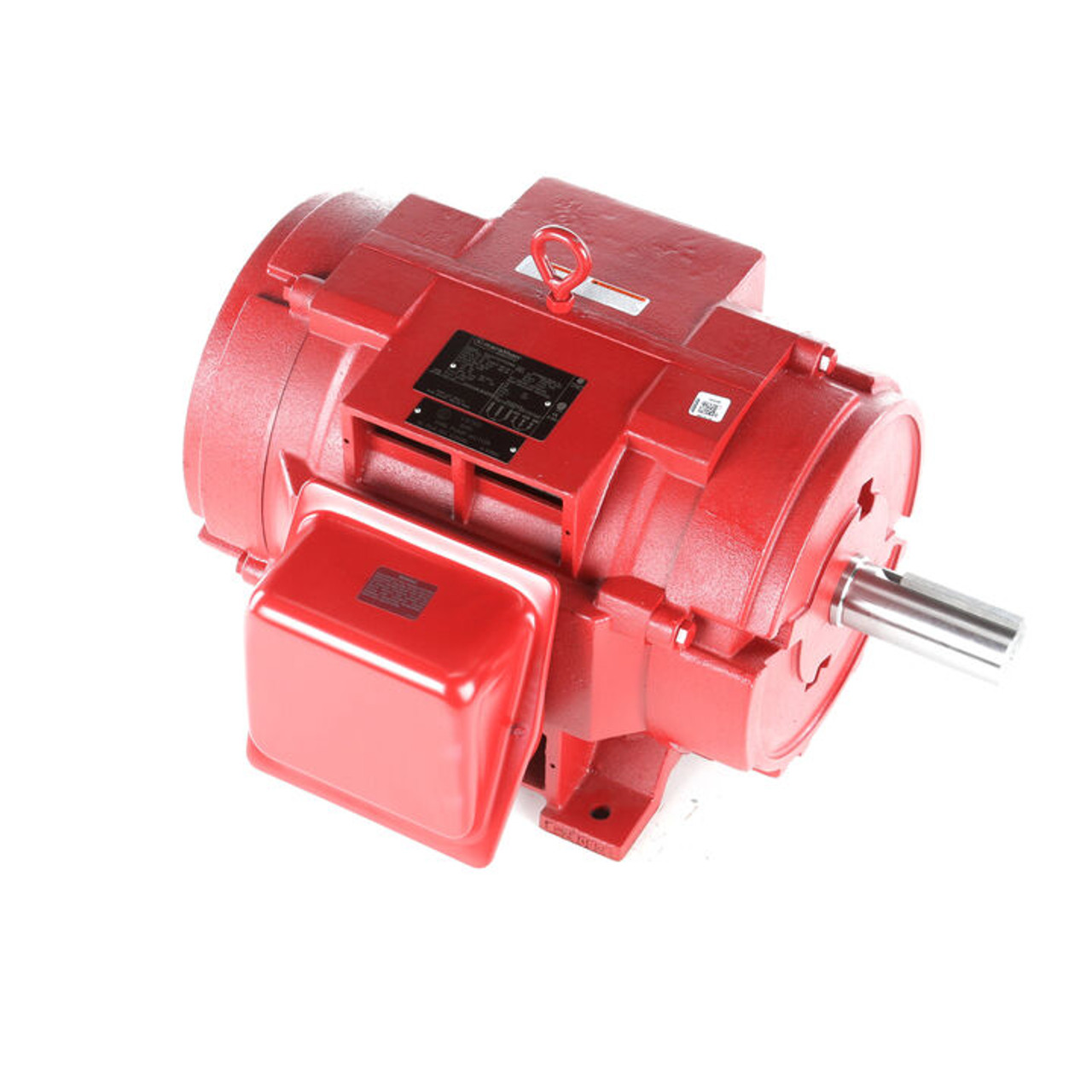

Product Description
Nameplate Specifications
| Phase: 3 | Output HP: 30 Hp |
| Output KW: 22.4 kW | Voltage: 190/380-400 V |
| Speed: 1770 rpm | Service Factor: 1.15 |
| Frame: 286T | Thermal Protection: No Protection |
| Efficiency: 92.4 % | Ambient Temperature: 50 °C |
| Frequency: 60 Hz | Current: 87.0/43.0-41.0 A |
| Power Factor: 84 | Duty: Continuous |
| Insulation Class: F | Design Code: B |
| KVA Code: G | Drive End Bearing Size: 6311 |
| Opp Drive End Bearing Size: 6210 | Enclosure: Drip Proof |
| UL: Listed | CSA: Y |
| CE: Y | IP Code: 23 |
| Number of Speeds: 1 |
Product Videos
Custom Field
Output HP 30 Hp
Output KW 22.4 kW
Voltage 190/380-400 V
Phase 3
Speed (RPM) 1770 rpm
Frame Size 286T
Mounting Rigid Base
Enclosure Drip Proof
Product Drawings1 U0154.pdf
