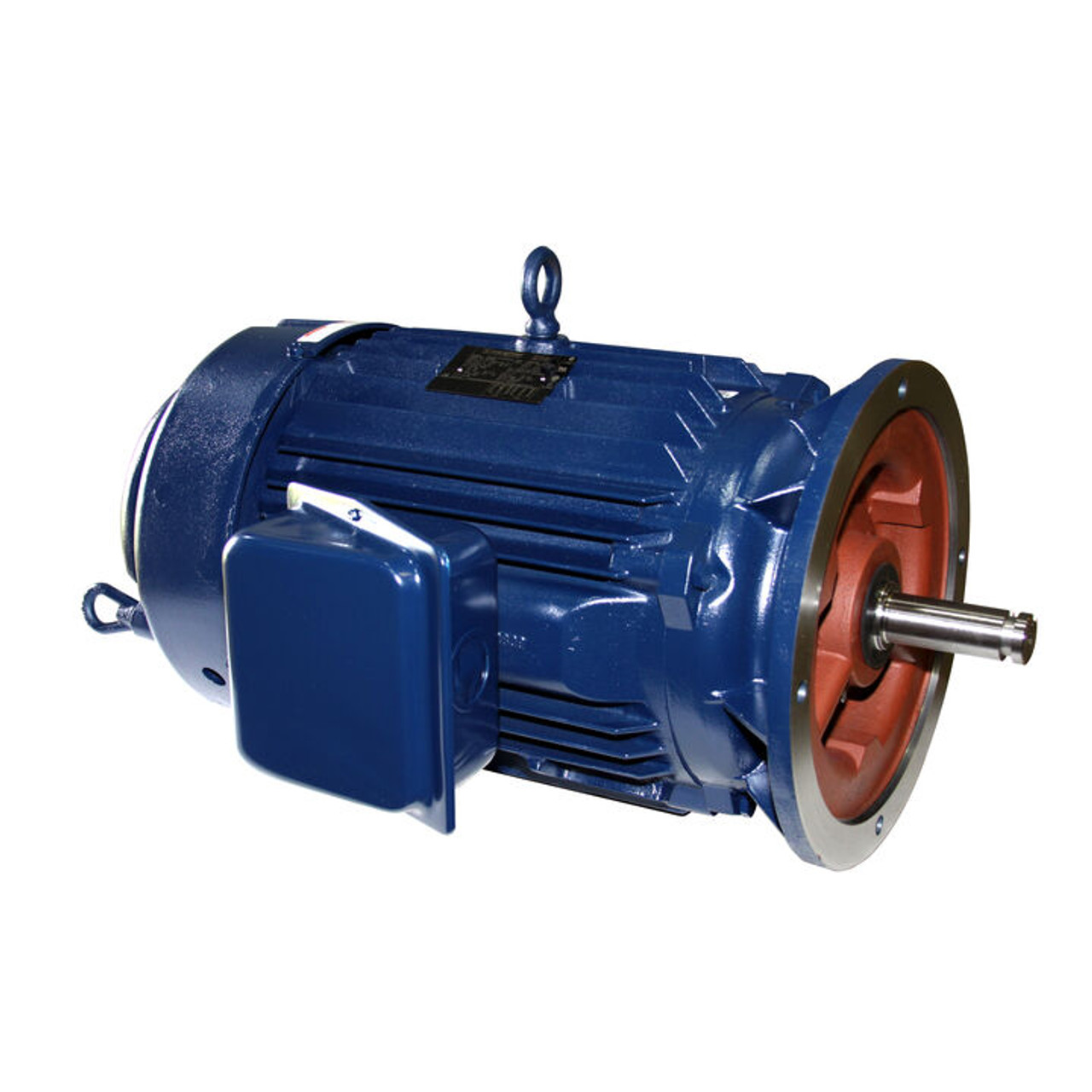

Product Description
Nameplate Specifications
| Phase: 3 | Output HP: 75 Hp |
| Output KW: 56 kW | Voltage: 230/460 V |
| Speed: 1185 rpm | Service Factor: 1.15 |
| Frame: 405HPV | Thermal Protection: No Protection |
| Efficiency: 94.5 % | Ambient Temperature: 40 °C |
| Frequency: 60 Hz | Current: 180.0/90.0 A |
| Power Factor: 83 | Duty: Continuous |
| Insulation Class: F | Design Code: B |
| KVA Code: G | Drive End Bearing Size: 6313 |
| Opp Drive End Bearing Size: 6314 | Enclosure: Totally Enclosed Fan Cooled |
| UL: Recognized | CSA: Y |
| CE: Y | IP Code: 43 |
| Number of Speeds: 1 |
Product Videos
Custom Field
Output HP 75 Hp
Output KW 56 kW
Voltage 230/460 V
Phase 3
Speed (RPM) 1185 rpm
Frame Size 365HPV
Mounting Round
Enclosure Totally Enclosed Fan Cooled
Product Drawings1 M918B.pdf
