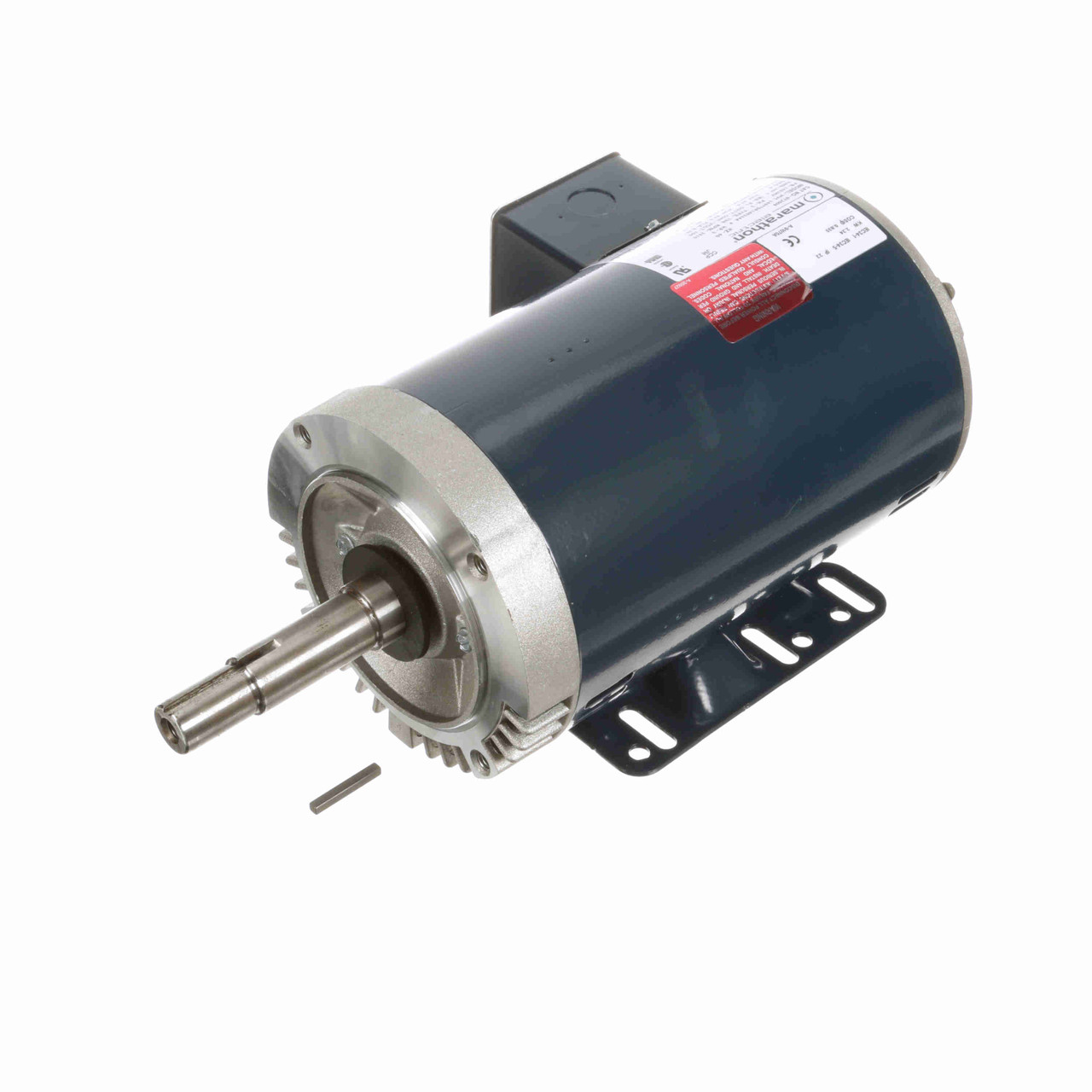

Product Description
Nameplate Specifications
| Phase: | 3 | Output HP: | 3 Hp |
| Output KW: | 2.2 kW | Voltage: | 200 V |
| Speed: | 3510 rpm | Service Factor: | 1.15 |
| Frame: | 145JMV | Enclosure: | Drip Proof |
| Thermal Protection: | No Protection | Efficiency: | 87.5 % |
| Ambient Temperature: | 40 °C | Frequency: | 60 Hz |
| Current: | 8.8 A | Power Factor: | 83.5 |
| Duty: | Continuous | Insulation Class: | F |
| Design Code: | A | KVA Code: | M |
| Drive End Bearing Size: | 6206 | Opp Drive End Bearing Size: | 6203 |
| UL: | Recognized | CSA: | Y |
| CE: | Y | IP Code: | 22 |
| Number of Speeds: | 1 |
Product Videos
Custom Field
Output HP 3 Hp
Output KW 2.2 kW
Voltage 200 V
Phase 3
Speed (RPM) 3510 rpm
Frame Size 145JMV
Mounting C-Face with Base
Enclosure Drip Proof
Product Drawings1 GT2009.pdf
