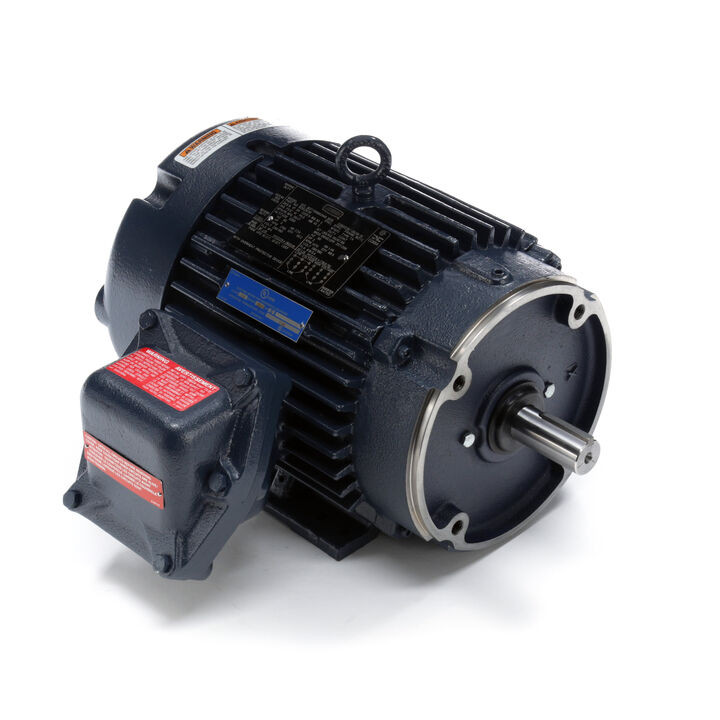

Product Description
Nameplate Specifications
| Phase: 3 | Output HP: 3 & 2 Hp |
| Output KW: 2.2 & 1.5 kW | Voltage: 230/460 & 190/380 V |
| Speed: 3525 & 2935 rpm | Service Factor: 1.15 & 1.15 |
| Frame: 182TC | Thermal Protection: Thermostat |
| Efficiency: 87.5 & 85.5 % | Ambient Temperature: 40 °C |
| Frequency: 60 & 50 Hz | Current: 7.6/3.8 & 6.4/3.2 A |
| Power Factor: 85 | Duty: Continuous |
| Insulation Class: F | Design Code: B |
| KVA Code: K | Drive End Bearing Size: 6207 |
| Opp Drive End Bearing Size: 6206 | Enclosure: Explosion Proof Fan cooled |
| UL: UL Listed; also, UL Certified for Canada | CSA: N |
| CE: N | IP Code: 54 |
| Number of Speeds: 1 | Hazardous Location: DIV 1 EXP PROOF CL I GR CD CL II GR FG T3B |
Product Videos
Custom Field
Output HP 3 & 2 Hp
Output KW 2.2 & 1.5 kW
Voltage 230/460 & 190/380 V
Phase 3
Speed (RPM) 3525 & 2935 rpm
Frame Size 182TC
Mounting Rigid Base
Enclosure Totally Enclosed Fan Cooled
Product Drawings1 825125.00.pdf
