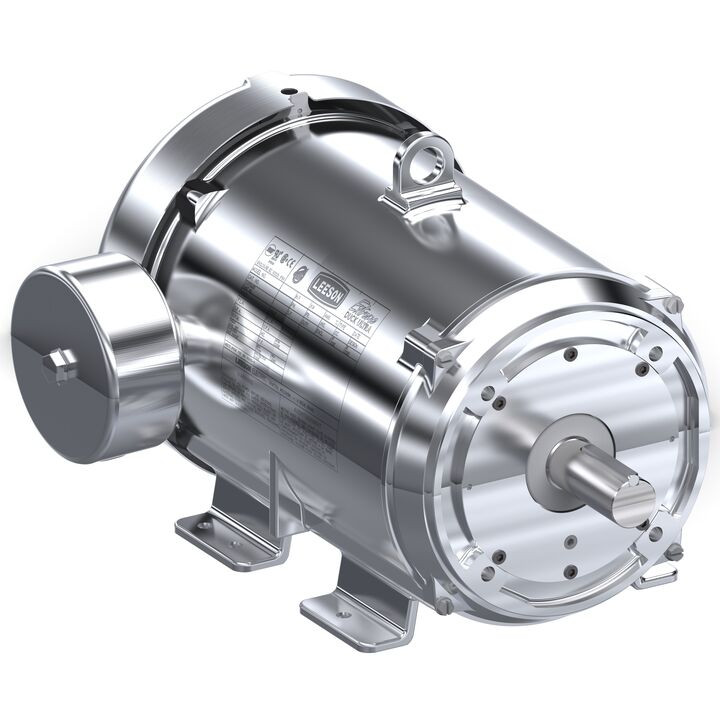

Product Description
Nameplate Specifications
| Phase: 3 | Output HP: 7.50 & 5 Hp |
| Output KW: 5.6 & 3.7 kW | Voltage: 230/460 & 190/380 V |
| Speed: 3525 & 2940 rpm | Service Factor: 1.15 & 1.15 |
| Frame: 215TC | Thermal Protection: No Protection |
| Efficiency: 89.5 & 88 % | Ambient Temperature: 40 °C |
| Frequency: 60 & 50 Hz | Current: 18.6/9.3 & 16/8 A |
| Power Factor: 84.6 | Duty: Continuous |
| Insulation Class: F | Design Code: B |
| KVA Code: H | Drive End Bearing Size: 6209 |
| Opp Drive End Bearing Size: 6207 | Enclosure: Totally Enclosed Fan Cooled |
| UL: Recognized | CSA: Y |
| CE: Y | IP Code: 69 |
| Number of Speeds: 1 |
Product Videos
Custom Field
Output HP 7.50 & 5 Hp
Output KW 5.6 & 3.7 kW
Voltage 230/460 & 190/380 V
Phase 3
Speed (RPM) 3525 & 2940 rpm
Frame Size 215TC
Mounting Rigid Base
Enclosure Totally Enclosed Fan Cooled
Product Drawings1 141409.00.pdf
