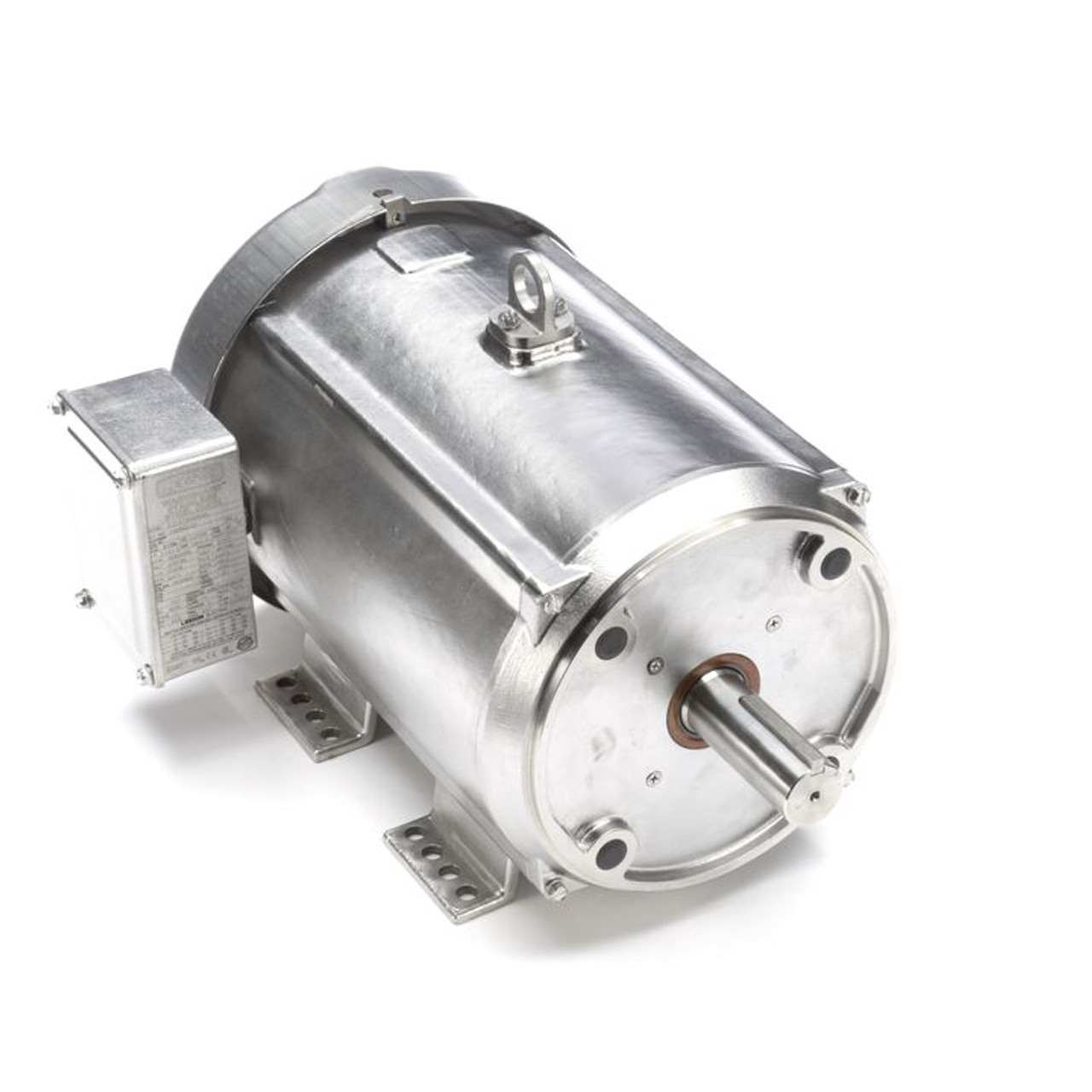

Product Description
Nameplate Specifications
| Phase: 3 | Output HP: 7.50 & 5 Hp |
| Output KW: 5.6 & 3.7 kW | Voltage: 230/460 & 190/380 V |
| Speed: 3540 & 2955 rpm | Service Factor: 1.15 & 1.15 |
| Frame: 213TC | Thermal Protection: No Protection |
| Efficiency: 90.2 & 89.5 % | Ambient Temperature: 40 °C |
| Frequency: 60 & 50 Hz | Current: 17.8/8.9 & 15/7.5 A |
| Power Factor: 87 | Duty: Continuous |
| Insulation Class: F | Design Code: B |
| KVA Code: H | Drive End Bearing Size: 6209 |
| Opp Drive End Bearing Size: 6207 | Enclosure: Totally Enclosed Fan Cooled |
| UL: Recognized | CSA: Y |
| CE: Y | IP Code: 56 |
| Number of Speeds: 1 |
Product Videos
Custom Field
Output HP 7.50 & 5 Hp
Output KW 5.6 & 3.7 kW
Voltage 230/460 & 190/380 V
Phase 3
Speed (RPM) 3540 & 2955 rpm
Frame Size 213TC
Mounting Rigid Base
Enclosure Totally Enclosed Fan Cooled
Product Drawings1 140825.00.pdf
