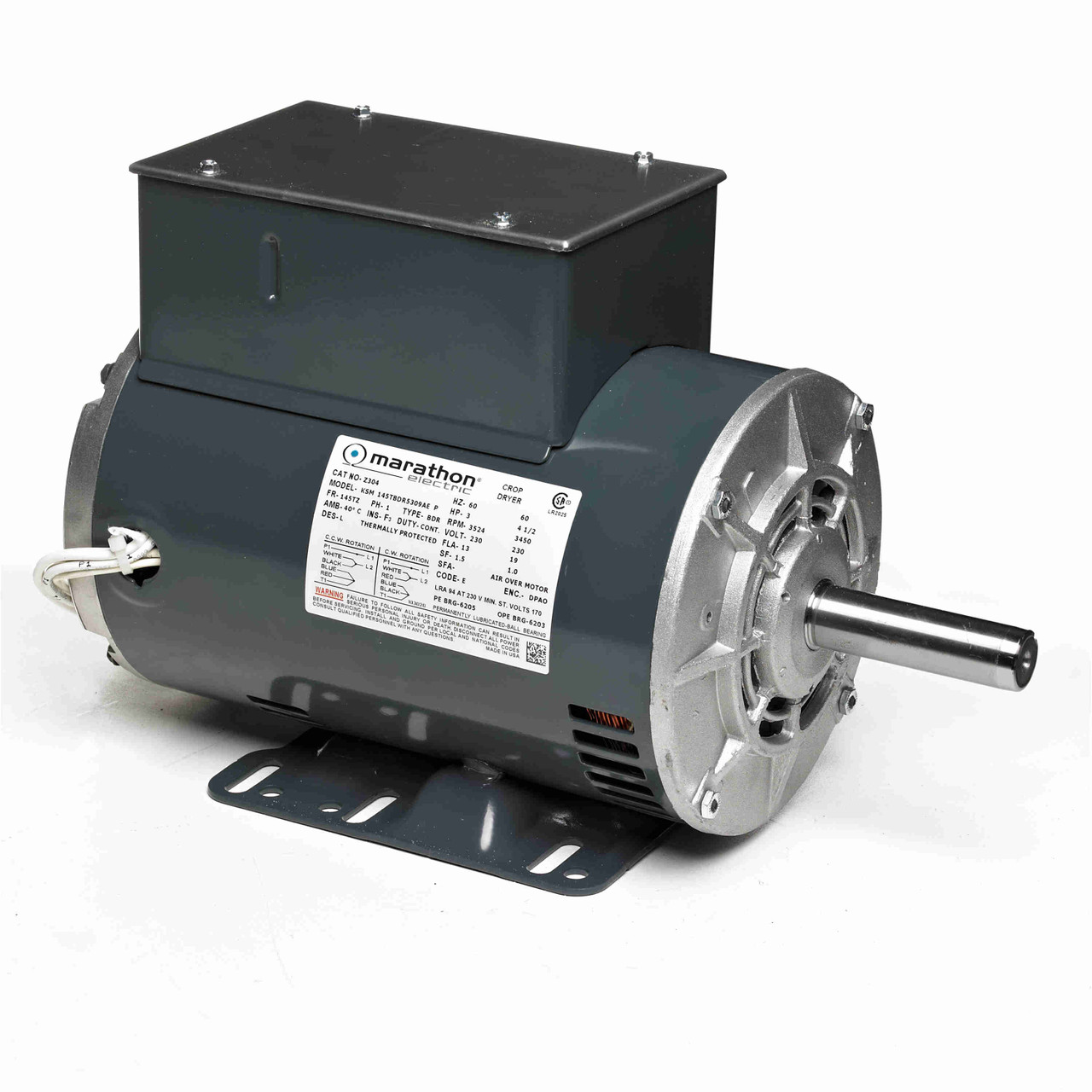

Product Description
Nameplate Specifications
| Phase: | 1 | Output HP: | 16 Hp |
| Output KW: | 11.9 kW | Voltage: | 230 V |
| Speed: | 1760 rpm | Service Factor: | 1.15 |
| Frame: | 256TZ | Enclosure: | Drip Proof |
| Thermal Protection: | No Protection | Efficiency: | 91 % |
| Ambient Temperature: | 40 °C | Frequency: | 60 Hz |
| Current: | 61.0 A | Power Factor: | 93.7 |
| Duty: | Continuous | Insulation Class: | F |
| Design Code: | NO DESIGN CODE | KVA Code: | E |
| Drive End Bearing Size: | 6309 | Opp Drive End Bearing Size: | 6206 |
| UL: | Recognized | CSA: | Y |
| CE: | Y | IP Code: | 23 |
| Number of Speeds: | 1 |
Product Videos
Custom Field
Output HP 16 Hp
Output KW 11.9 kW
Voltage 230 V
Phase 1
Speed (RPM) 1760 rpm
Frame Size 256TZ
Mounting Rigid Base
Enclosure Drip Proof
Product Drawings1 Z319.pdf
