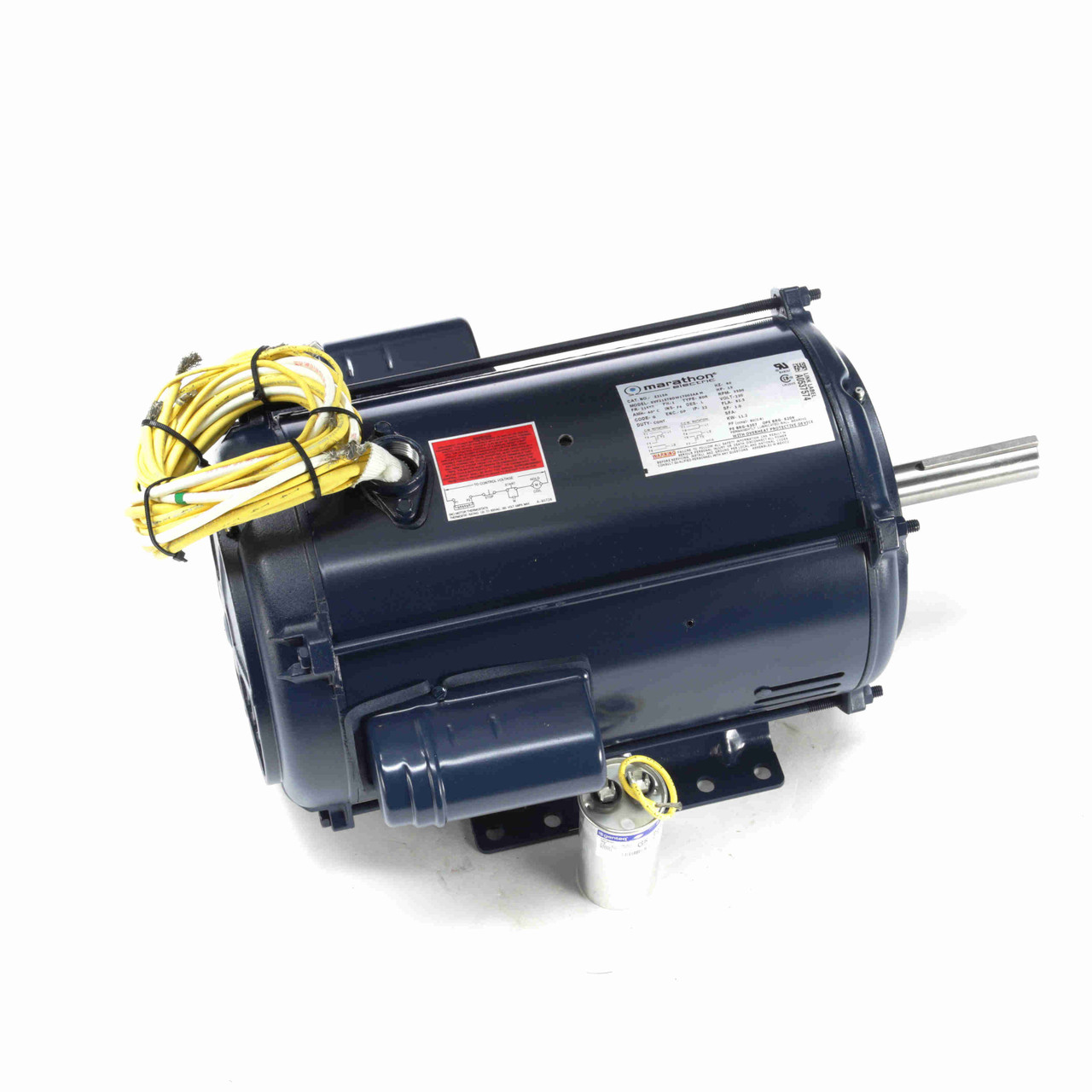

Product Description
Nameplate Specifications
| Phase: | 1 | Output HP: | 10 & 15 Hp |
| Output KW: | 7.5 & 11.2 kW | Voltage: | 230 & 230 V |
| Speed: | 3520 & 3455 rpm | Service Factor: | 1.15 & 1.0 |
| Frame: | 215TZ | Enclosure: | Drip Proof |
| Thermal Protection: | No Protection | Efficiency: | 85.5 & 85.5 % |
| Ambient Temperature: | 40 °C | Frequency: | 60 & 60 Hz |
| Current: | 39.5 & 61.5 A | Power Factor: | 82 |
| Duty: | Continuous | Insulation Class: | F |
| Design Code: | L | KVA Code: | G |
| Drive End Bearing Size: | 6307 | Opp Drive End Bearing Size: | 6206 |
| UL: | Recognized | CSA: | Y |
| CE: | N | IP Code: | 12 |
| Number of Speeds: | 1 |
Product Videos
Custom Field
Output HP 10 & 15 Hp
Output KW 7.5 & 11.2 kW
Voltage 230 & 230 V
Phase 1
Speed (RPM) 3520 & 3455 rpm
Frame Size 215TZ
Mounting Rigid Base
Enclosure Drip Proof
Product Drawings1 Z315A.pdf
