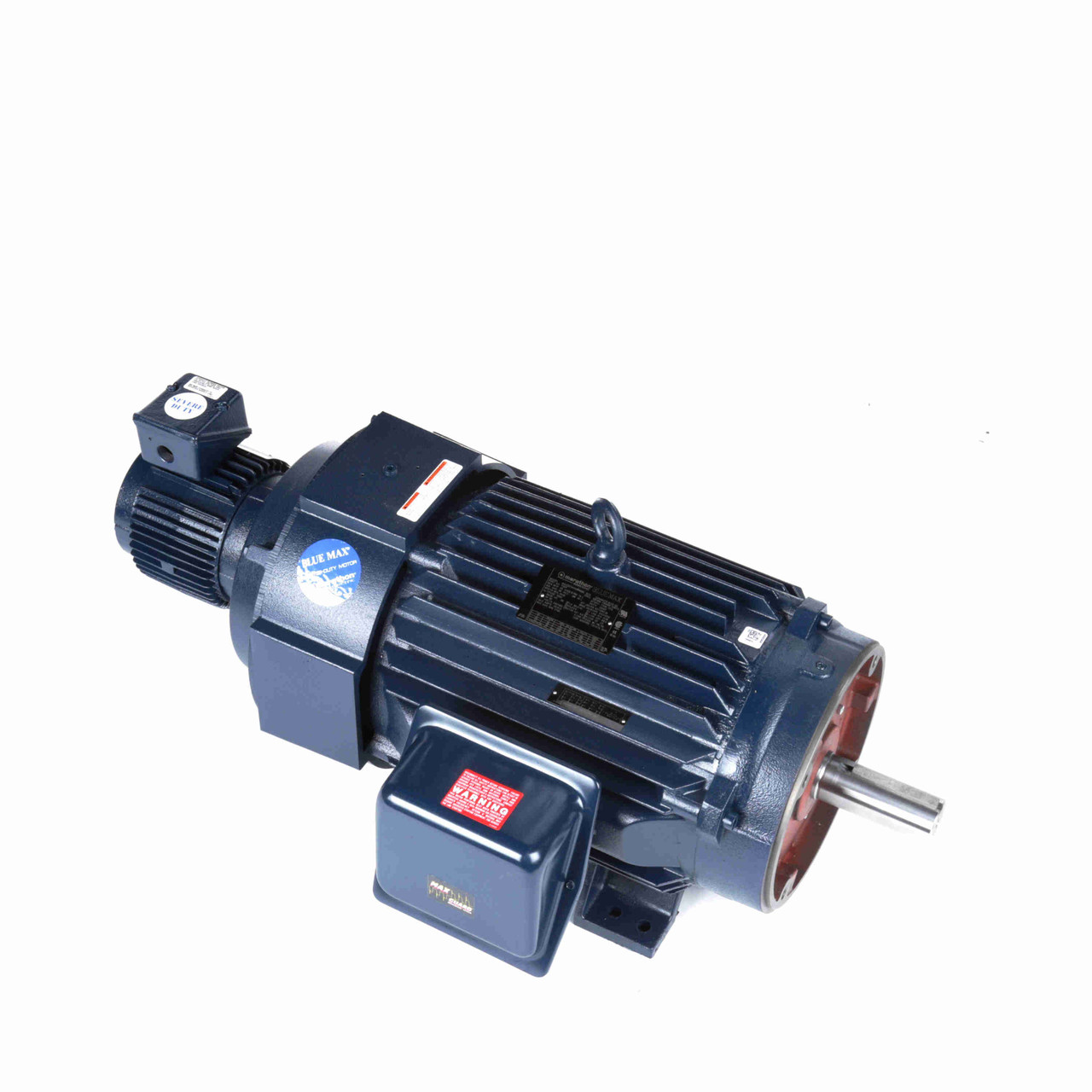

Product Description
Nameplate Specifications
| Phase: | 3 | Output HP: | 30 Hp |
| Output KW: | 22.4 kW | Voltage: | 230/460 V |
| Speed: | 1170 rpm | Service Factor: | 1 |
| Frame: | 326TC | Enclosure: | Totally Enclosed Blower cooled - Axial |
| Thermal Protection: | Thermostat | Efficiency: | 89.5 % |
| Ambient Temperature: | 40 °C | Frequency: | 60 Hz |
| Current: | 80.5/40.0 A | Power Factor: | 78 |
| Duty: | Continuous | Insulation Class: | H |
| Design Code: | INV | KVA Code: | G |
| Drive End Bearing Size: | 6312 | Opp Drive End Bearing Size: | 6311 |
| UL: | Recognized | CSA: | Y |
| CE: | Y | IP Code: | 43 |
| Number of Speeds: | 1 |
Product Videos
Custom Field
Output HP 30 Hp
Output KW 22.4 kW
Voltage 230/460 V
Phase 3
Speed (RPM) 1170 rpm
Frame Size 326TC
Mounting C-FACE
Enclosure Totally Enclosed Blower cooled - Axial
Product Drawings1 Y584.pdf
