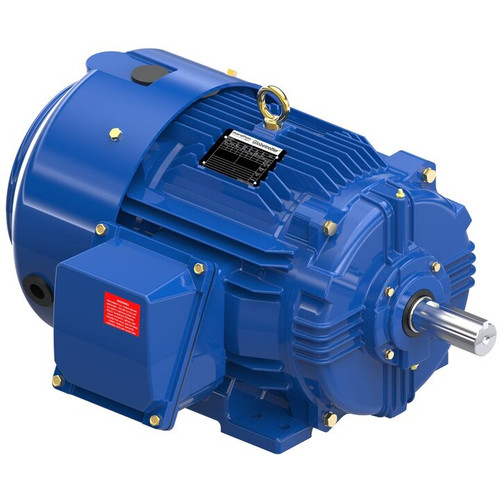

Product Description
Nameplate Specifications
| Phase: 3 | Output HP: 15 Hp |
| Output KW: 11.2 kW | Voltage: 460 V |
| Speed: 1770 rpm | Service Factor: 1.15 |
| Frame: 254T | Thermal Protection: No Protection |
| Efficiency: 92.4 % | Ambient Temperature: 40 °C |
| Frequency: 60 Hz | Current: 18.4 A |
| Power Factor: 83 | Duty: Continuous |
| Insulation Class: H | Design Code: B |
| KVA Code: G | Drive End Bearing Size: 6309 |
| Opp Drive End Bearing Size: 6209 | Enclosure: Totally Enclosed Fan Cooled |
| UL: Recognized | CSA: Y |
| CE: Y | IP Code: 56 |
| Number of Speeds: 1 |
Product Videos
Custom Field
Output HP 15 Hp
Output KW 11.2 kW
Voltage 460 V
Phase 3
Speed (RPM) 1770 rpm
Frame Size 254T
Mounting Rigid Base
Enclosure Totally Enclosed Fan Cooled
Product Drawings1 W546A-P.pdf
