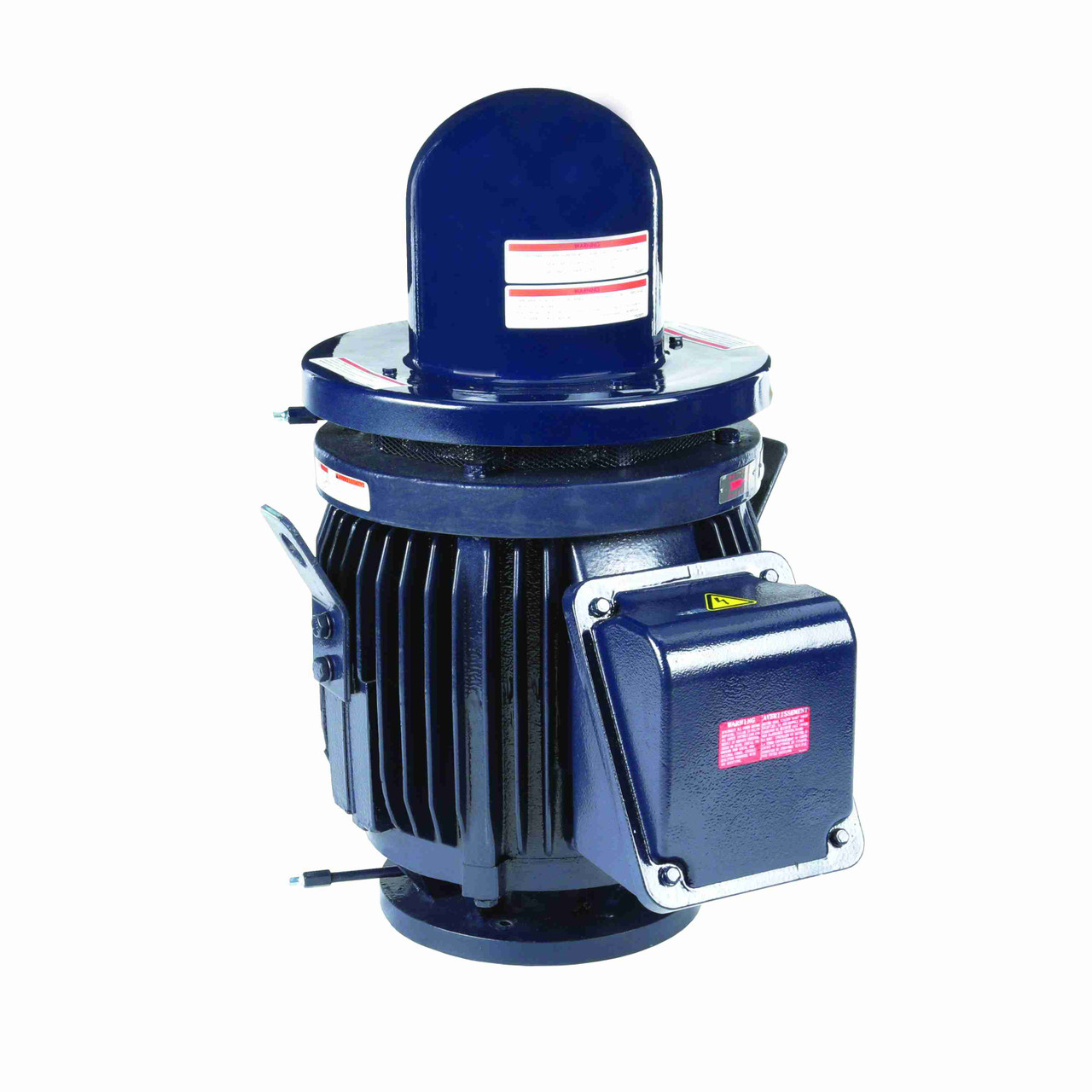

Product Description
Nameplate Specifications
| Phase: | 3 | Output HP: | 15 & 10 Hp |
| Output KW: | 11.2 & 7.5 kW | Voltage: | 230/460 & 190/380 V |
| Speed: | 1760 & 1465 rpm | Service Factor: | 1.15 & 1.15 |
| Frame: | 254TPV | Enclosure: | Weather Protected 1 |
| Thermal Protection: | No Protection | Efficiency: | 93 & 91.7 % |
| Ambient Temperature: | 40 °C | Frequency: | 60 & 50 Hz |
| Current: | 37/18.4 & 30.5/15.3 A | Power Factor: | 82 |
| Duty: | Continuous | Insulation Class: | F |
| Design Code: | B | KVA Code: | G |
| Drive End Bearing Size: | 6309 | Opp Drive End Bearing Size: | 7311B |
| UL: | Recognized | CSA: | Y |
| CE: | Y | IP Code: | 23 |
| Number of Speeds: | 1 |
Product Videos
Custom Field
Output HP 15 & 10 Hp
Output KW 11.2 & 7.5 kW
Voltage 230/460 & 190/380 V
Phase 3
Speed (RPM) 1760 & 1465 rpm
Frame Size 254TPV
Mounting Rigid Base
Enclosure Weather Protected 1
Product Drawings1 V113A.pdf
