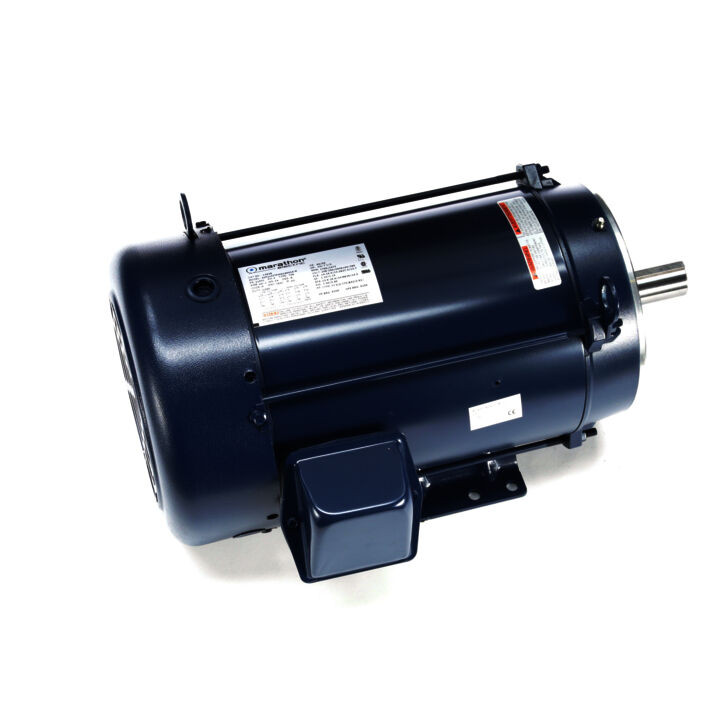

Product Description
Nameplate Specifications
| Phase: 3 | Output HP: 20 & 15 Hp |
| Output KW: 14.9 & 11.2 kW | Voltage: 230/460 & 190/380 V |
| Speed: 1768 & 1472 rpm | Service Factor: 1.15 & 1.15 |
| Frame: 256TV | Thermal Protection: No Protection |
| Efficiency: 93 & 92.7 % | Ambient Temperature: 40 °C |
| Frequency: 60 & 50 Hz | Current: 48.5/24.2 & 44.5/22.3 A |
| Power Factor: 83.5 | Duty: Continuous |
| Insulation Class: H | Design Code: B |
| KVA Code: G | Drive End Bearing Size: 6309 |
| Opp Drive End Bearing Size: 6209 | Enclosure: Totally Enclosed Air Over |
| UL: Recognized | CSA: Y |
| CE: Y | IP Code: 56 |
| Number of Speeds: 1 |
Product Videos
Custom Field
Output HP 20 Hp
Output KW 14.9 kW
Voltage 230/460 V
Phase 3
Speed (RPM) 1768 rpm
Frame Size 256TV
Mounting Rigid Base
Enclosure Totally Enclosed Air Over
Product Drawings1 U1872A.pdf
