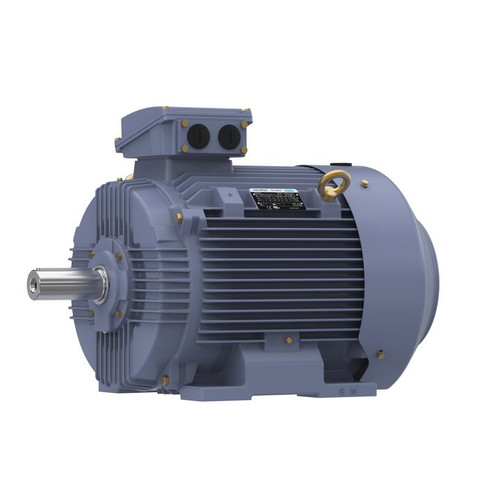

Product Description
Nameplate Specifications
| Phase: 3 | Output HP: 50 & 40 Hp |
| Output KW: 37.0 & 30.0 kW | Voltage: 230/460 & 200/400 V |
| Speed: 1785 & 1490 rpm | Service Factor: 1.15 & 1.15 |
| Frame: 225S | Thermal Protection: No Protection |
| Efficiency: 94.5 & 93.6 % | Ambient Temperature: 40 °C |
| Frequency: 60 & 50 Hz | Current: 118/59 & 112/56 A |
| Power Factor: 84 | Duty: Continuous |
| Insulation Class: F | Design Code: N (IEC) |
| KVA Code: J | Drive End Bearing Size: 6313 |
| Opp Drive End Bearing Size: 6213 | Enclosure: Totally Enclosed Fan Cooled |
| UL: Recognized | CSA: N |
| CE: Y | IP Code: 55 |
| Number of Speeds: 1 | Efficiency Class: IE3 |
Product Videos
Custom Field
Output HP 50 Hp
Output KW 37 kW
Voltage 230/460 V
Phase 3
Speed (RPM) 1785 rpm
Frame Size 225S
Mounting B3
Enclosure Totally Enclosed Fan Cooled
Product Drawings1 R349B.pdf
