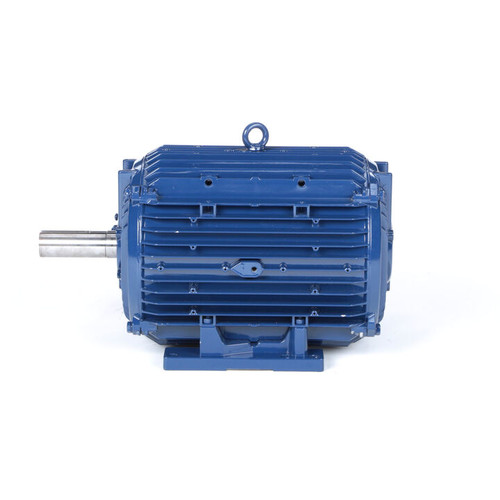

Product Description
Nameplate Specifications
| Phase: 3 | Output HP: 10 Hp |
| Output KW: 7.5 kW | Voltage: 460 V |
| Speed: 1800 rpm | Service Factor: 1.15 |
| Frame: 215T | Thermal Protection: No Protection |
| Efficiency: 95 % | Ambient Temperature: 40 °C |
| Frequency: 90 Hz | Current: 12.2 A |
| Duty: Continuous | Insulation Class: F |
| Design Code: No Design Code | KVA Code: N/A |
| Drive End Bearing Size: 6308 | Opp Drive End Bearing Size: 6308 |
| Enclosure: Totally Enclosed Fan Cooled | UL: Recognized |
| CSA: N | CE: N |
| IP Code: 54 | Number of Speeds: 1 |
Product Videos
Custom Field
Output HP 10 Hp
Output KW 7.5 kW
Voltage 460 V
Phase 3
Speed (RPM) 1800 rpm
Frame Size 215T
Mounting Rigid Base
Enclosure Totally Enclosed Fan Cooled
Product Drawings1 NM2419.pdf
