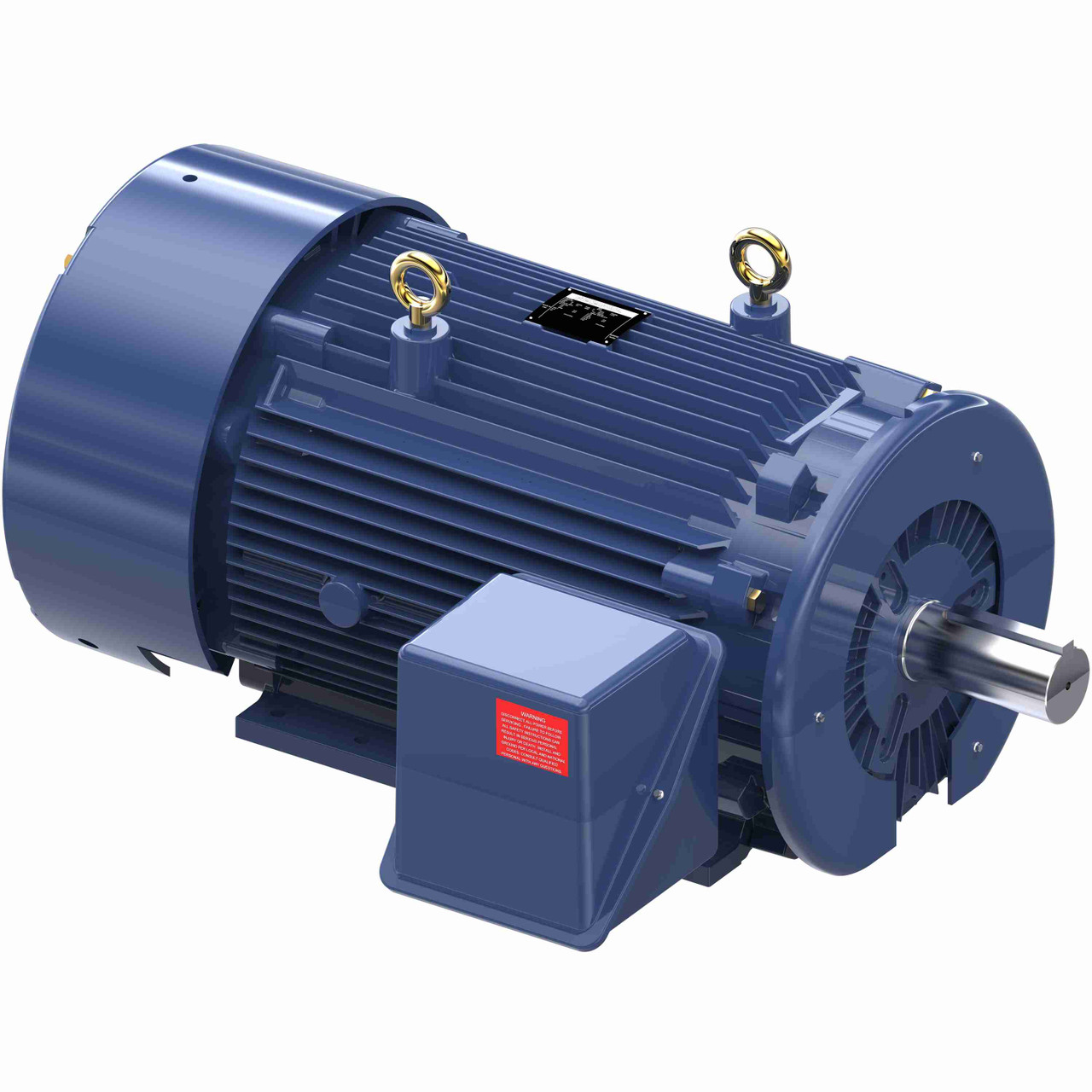

Product Description
Nameplate Specifications
| Phase: | 3 | Output HP: | 250 & 200 Hp |
| Output KW: | 187.0 & 149.0 kW | Voltage: | 460 & 380 V |
| Speed: | 890 & 740 rpm | Service Factor: | 1.0 & 1.0 |
| Frame: | 449TZ | Enclosure: | Totally Enclosed Fan Cooled |
| Thermal Protection: | No Protection | Efficiency: | 95 & 94.5 % |
| Ambient Temperature: | 40 °C | Frequency: | 60 & 50 Hz |
| Current: | 324 & 324 A | Power Factor: | 76 |
| Duty: | Continuous | Insulation Class: | H |
| Design Code: | B | KVA Code: | G |
| Drive End Bearing Size: | NU322 | Opp Drive End Bearing Size: | 6318 |
| UL: | Recognized | CSA: | Y |
| CE: | Y | IP Code: | 43 |
| Number of Speeds: | 1 |
Product Videos
Custom Field
Output HP 250 & 200 Hp
Output KW 187.0 & 149.0 kW
Voltage 460 & 380 V
Phase 3
Speed (RPM) 890 & 740 rpm
Frame Size 449TZ
Mounting Rigid Base
Enclosure TEFC
Product Drawings1 L471A.pdf
