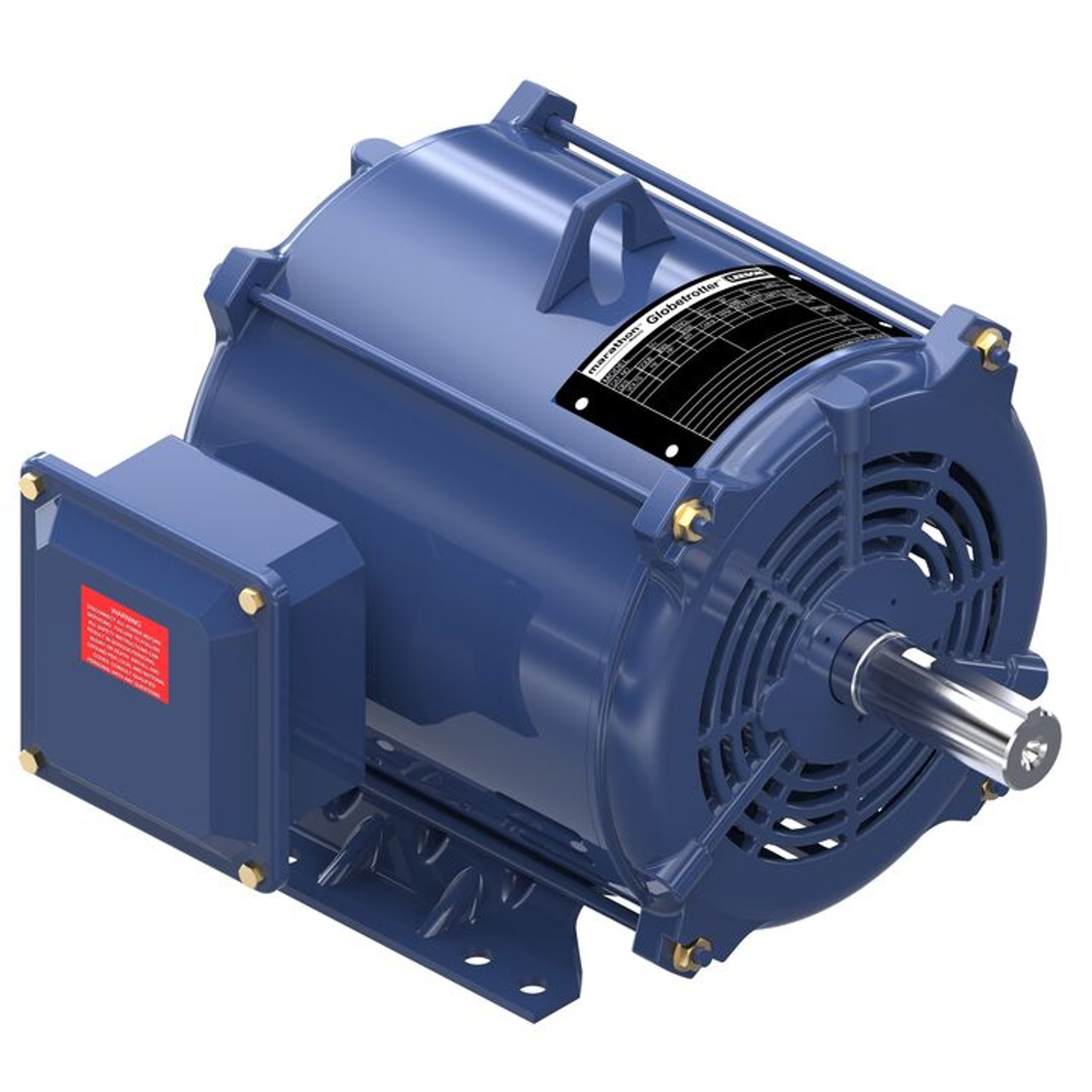

Product Description
Nameplate Specifications
| Phase: 3 | Output HP: 7.50 & 5 Hp |
| Output KW: 5.6 & 3.7 kW | Voltage: 208-230/460 & 190/380 V |
| Speed: 3510 & 2920 rpm | Service Factor: 1.15 & 1.15 |
| Frame: 184T | Thermal Protection: Thermostat |
| Efficiency: 88.5 & 87.5 % | Ambient Temperature: 40 °C |
| Frequency: 60 & 50 Hz | Current: 19.6-18.4/9.2 & 16.4/8.2 A |
| Power Factor: 86 | Duty: Continuous |
| Insulation Class: F | Design Code: A |
| KVA Code: J | Drive End Bearing Size: 6206 |
| Opp Drive End Bearing Size: 6203 | Enclosure: Drip Proof |
| UL: Recognized | CSA: Y |
| CE: Y | IP Code: 22 |
| Number of Speeds: 1 |
Product Videos
Custom Field
Output HP 7.5 Hp
Output KW 5.6 kW
Voltage 208-230/460 V
Phase 3
Speed (RPM) 3510 rpm
Frame Size 184T
Mounting Rigid Base
Enclosure Drip Proof
Product Drawings1 GT6033.pdf
