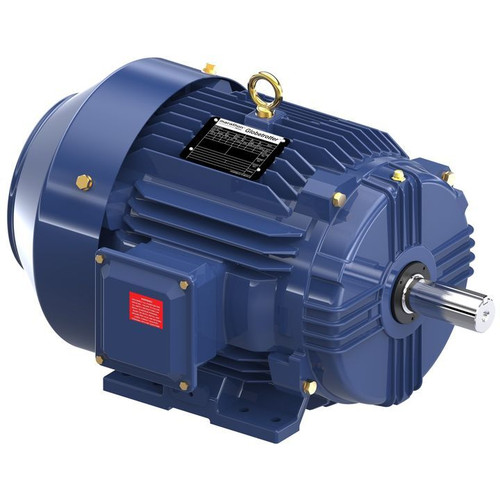

Product Description
Nameplate Specifications
| Phase: 3 | Output HP: 10 & 7.50 Hp |
| Output KW: 7.5 & 5.6 kW | Voltage: 230/460 & 190/380 V |
| Speed: 3518 & 2925 rpm | Service Factor: 1.15 & 1.15 |
| Frame: 215T | Thermal Protection: No Protection |
| Efficiency: 90.2 & 89.5 % | Ambient Temperature: 40 °C |
| Frequency: 60 & 50 Hz | Current: 23.6/11.8 & 21.6/10.8 A |
| Power Factor: 88 | Duty: Continuous |
| Insulation Class: F | Design Code: B |
| KVA Code: H | Drive End Bearing Size: 6307 |
| Opp Drive End Bearing Size: 6206 | Enclosure: Totally Enclosed Fan Cooled |
| UL: Listed | CSA: Y |
| CE: Y | IP Code: 43 |
| Number of Speeds: 1 | Hazardous Location: DIVISION 2 T2B |
Product Videos
Custom Field
Output HP 10 Hp
Output KW 7.5 kW
Voltage 230/460 V
Phase 3
Speed (RPM) 3518 rpm
Frame Size 215T
Mounting Rigid Base
Enclosure Totally Enclosed Fan Cooled
Product Drawings1 GT1518.pdf
