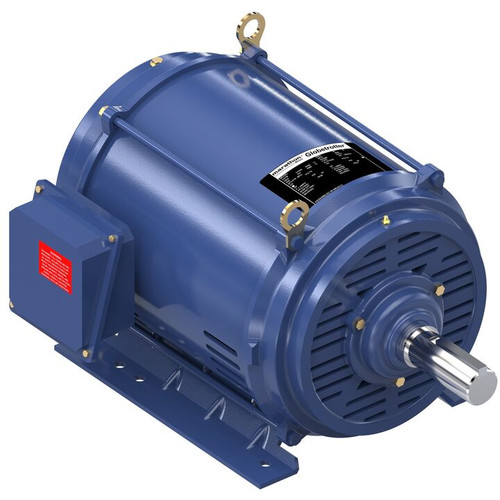

Product Description
Nameplate Specifications
| Phase: 3 | Output HP: 30 & 25 Hp |
| Output KW: 22.4 & 18.7 kW | Voltage: 230/460 & 190/380 V |
| Speed: 1770 & 1470 rpm | Service Factor: 1.15 & 1.15 |
| Frame: 286T | Thermal Protection: No Protection |
| Efficiency: 93.6 & 92.7 % | Ambient Temperature: 40 °C |
| Frequency: 60 & 50 Hz | Current: 71/35.5 & 72/36 A |
| Power Factor: 84 | Duty: Continuous |
| Insulation Class: F | Design Code: B |
| KVA Code: G | Drive End Bearing Size: 6311 |
| Opp Drive End Bearing Size: 6211 | Enclosure: Totally Enclosed Fan Cooled |
| UL: Recognized | CSA: Y |
| CE: Y | IP Code: 55 |
| Number of Speeds: 1 |
Product Videos
Custom Field
Output HP 30 Hp
Output KW 22.4 kW
Voltage 230/460 V
Phase 3
Speed (RPM) 1770 rpm
Frame Size 286T
Mounting Rigid Base
Enclosure Totally Enclosed Fan Cooled
Product Drawings1 GT1031A-P.pdf
