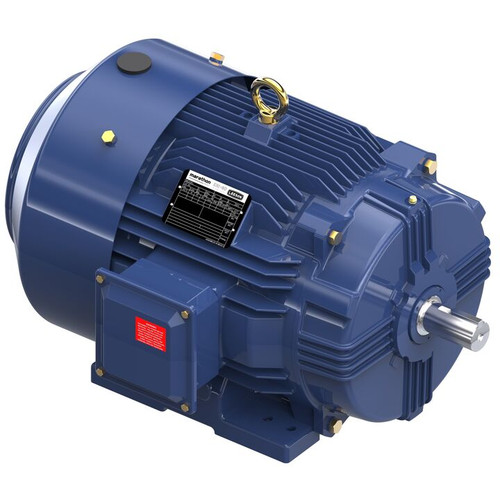

Product Description
Nameplate Specifications
| Phase: 3 | Output HP: 5 & 3 Hp |
| Output KW: 3.7 & 2.2 kW | Voltage: 230/460 & 190/380 V |
| Speed: 880 & 735 rpm | Service Factor: 1.15 & 1.15 |
| Frame: 254T | Thermal Protection: No Protection |
| Efficiency: 86.5 & 86.5 % | Ambient Temperature: 40 °C |
| Frequency: 60 & 50 Hz | Current: 14.2/7.1 & 11.4/5.7 A |
| Power Factor: 72 | Duty: Continuous |
| Insulation Class: F | Design Code: B |
| KVA Code: J | Drive End Bearing Size: 6309 |
| Opp Drive End Bearing Size: 6209 | Enclosure: Totally Enclosed Fan Cooled |
| UL: Recognized | CSA: Y |
| CE: Y | IP Code: 55 |
| Number of Speeds: 1 |
Product Videos
Custom Field
Output HP 5 Hp
Output KW 3.7 kW
Voltage 230/460 V
Phase 3
Speed (RPM) 880 rpm
Frame Size 254T
Mounting Rigid Base
Enclosure Totally Enclosed Fan Cooled
Product Drawings1 GT10109.pdf
