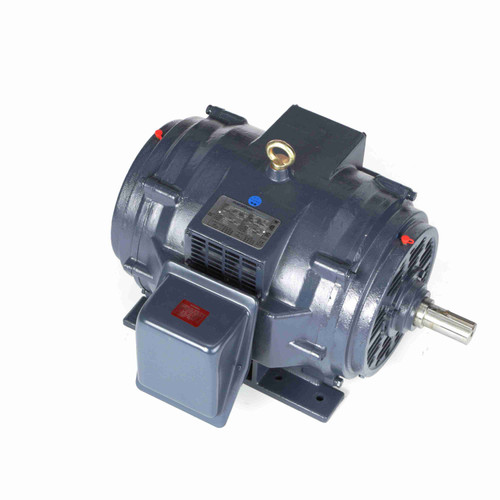

Product Description
Nameplate Specifications
| Phase: | 3 | Output HP: | 30 & 25 Hp |
| Output KW: | 22.4 & 18.7 kW | Voltage: | 230/460 & 190/380 V |
| Speed: | 1775 & 1475 rpm | Service Factor: | 1.15 & 1.15 |
| Frame: | 286TS | Enclosure: | Drip Proof |
| Thermal Protection: | No Protection | Efficiency: | 94.1 & 93 % |
| Ambient Temperature: | 40 °C | Frequency: | 60 & 50 Hz |
| Current: | 73/36.5 & 73/36.5 A | Power Factor: | 82 |
| Duty: | Continuous | Insulation Class: | F |
| Design Code: | B | KVA Code: | G |
| Drive End Bearing Size: | 6311 | Opp Drive End Bearing Size: | 6210 |
| UL: | Recognized | CSA: | Y |
| CE: | Y | IP Code: | 22 |
| Number of Speeds: | 1 |
Product Videos
Custom Field
Output HP 30 & 25 Hp
Output KW 22.4 & 18.7 kW
Voltage 230/460 & 190/380 V
Phase 3
Speed (RPM) 1775 & 1475 rpm
Frame Size 286TS
Mounting Globetrotter
Enclosure Drip Proof
Product Drawings1 GT0070.pdf
