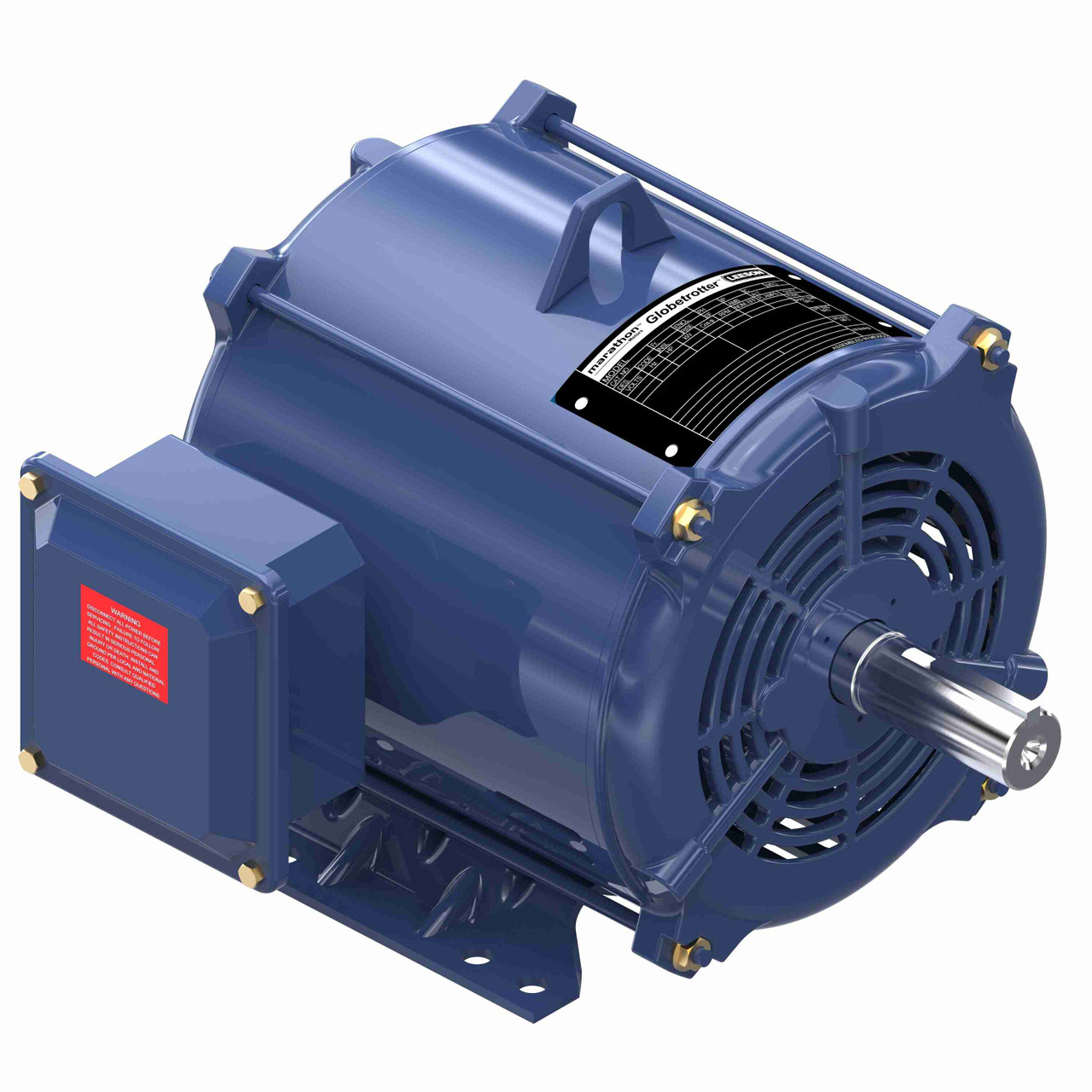

Product Description
Nameplate Specifications
| Phase: | 3 | Output HP: | 7.50 & 5 Hp |
| Output KW: | 5.6 & 3.7 kW | Voltage: | 208-230/460 & 190/380 V |
| Speed: | 3510 & 2920 rpm | Service Factor: | 1.15 & 1.15 |
| Frame: | 184T | Enclosure: | Drip Proof |
| Thermal Protection: | No Protection | Efficiency: | 88.5 & 87.5 % |
| Ambient Temperature: | 40 °C | Frequency: | 60 & 50 Hz |
| Current: | 19.6-18.4/9.2 & 16.4/8.2 A | Power Factor: | 86 |
| Duty: | Continuous | Insulation Class: | F |
| Design Code: | A | KVA Code: | J |
| Drive End Bearing Size: | 6206 | Opp Drive End Bearing Size: | 6203 |
| UL: | Recognized | CSA: | Y |
| CE: | Y | IP Code: | 22 |
| Number of Speeds: | 1 |
Product Videos
Custom Field
Output HP 7.50 & 5 Hp
Output KW 5.6 & 3.7 kW
Voltage 208-230/460 & 190/380 V
Phase 3
Speed (RPM) 3510 & 2920 rpm
Frame Size 184T
Mounting Rigid Base
Enclosure Drip Proof
Product Drawings1 GT0015A.pdf
