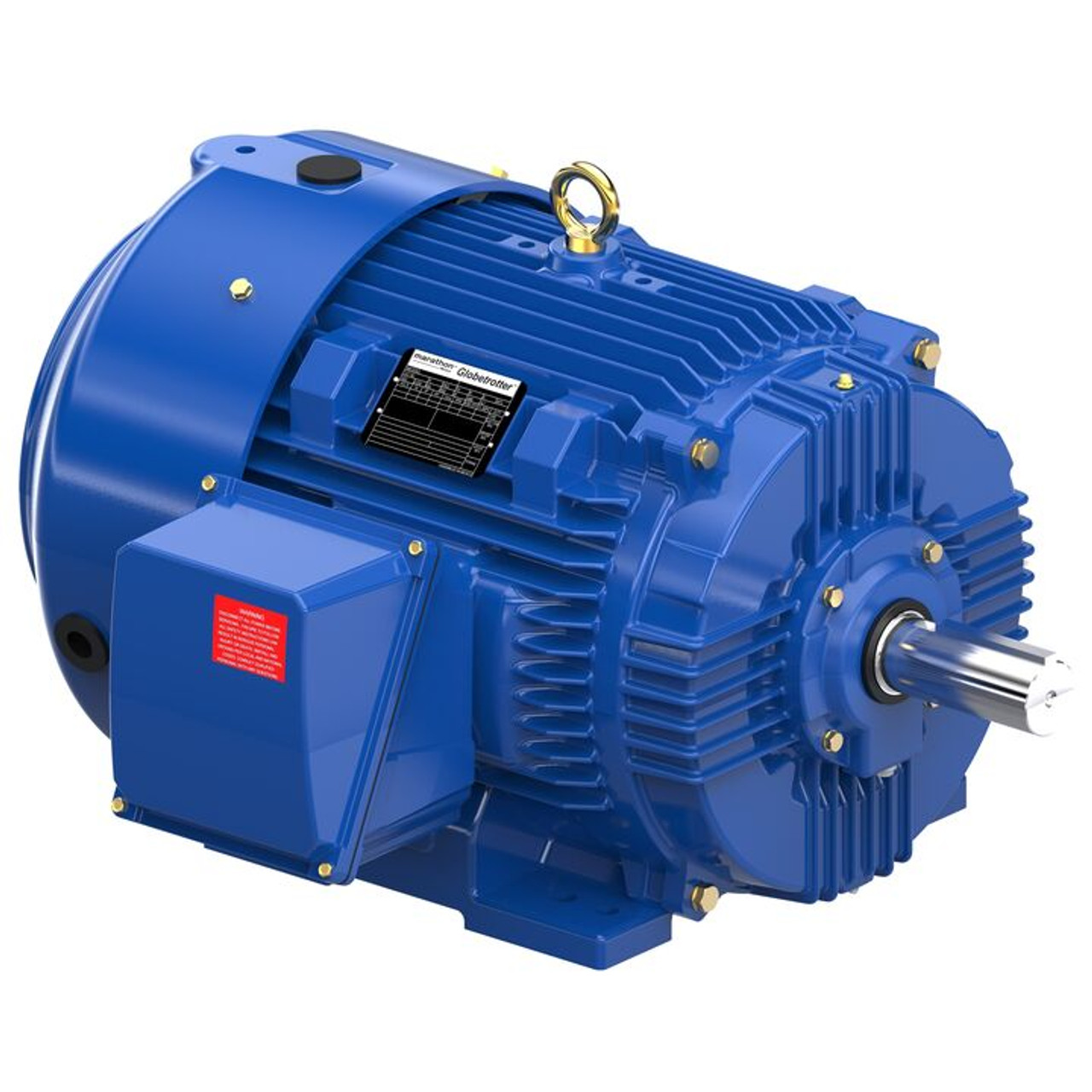

Product Description
Nameplate Specifications
| Phase: 3 | Output HP: 50 Hp |
| Output KW: 37 kW | Voltage: 575 V |
| Speed: 1782 rpm | Service Factor: 1.15 |
| Frame: 326T | Thermal Protection: No Protection |
| Efficiency: 94.5 % | Ambient Temperature: 40 °C |
| Frequency: 60 Hz | Current: 47 A |
| Power Factor: 85 | Duty: Continuous |
| Insulation Class: H | Design Code: B |
| KVA Code: G | Drive End Bearing Size: 6312 |
| Opp Drive End Bearing Size: 6212 | Enclosure: Totally Enclosed Fan Cooled |
| UL: Listed | CSA: Y |
| CE: Y | IP Code: 55 |
| Number of Speeds: 1 | Hazardous Location: DIVISION 2 T2B |
Product Videos
Custom Field
Output HP 50 Hp
Output KW 37 kW
Voltage 575 V
Phase 3
Speed (RPM) 1782 rpm
Frame Size 326T
Mounting Rigid Base
Enclosure Totally Enclosed Fan Cooled
Product Drawings1 E678A.pdf
