Product Description

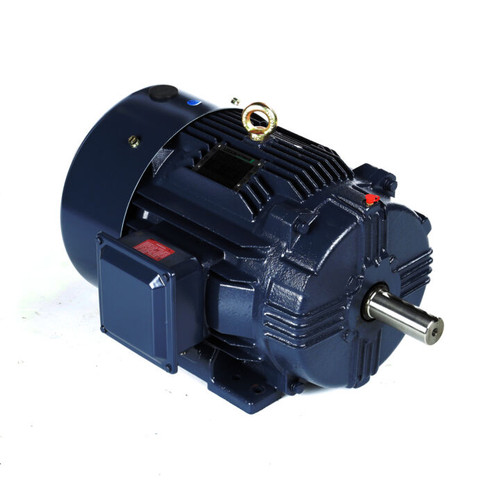

Nameplate Specifications
| Phase: 3 | Output HP: 7.50 Hp |
| Output KW: 5.6 kW | Voltage: 208/416 V |
| Speed: 1765 rpm | Service Factor: 1.15 |
| Frame: 213T | Thermal Protection: Automatic |
| Efficiency: 91 % | Ambient Temperature: 40 °C |
| Frequency: 60 Hz | Current: 22.1/11.1 A |
| Power Factor: 77.1 | Duty: Continuous |
| Insulation Class: F | Design Code: B |
| KVA Code: H | Drive End Bearing Size: 6307 |
| Opp Drive End Bearing Size: 6206 | Enclosure: Drip Proof |
| UL: Recognized | CSA: Y |
| CE: Y | IP Code: 22 |
| Number of Speeds: 1 |
Product Videos
Custom Field
Output HP 7.50 Hp
Output KW 5.6 kW
Voltage 208/416 V
Phase 3
Speed (RPM) 1765 rpm
Frame Size 213T
Mounting Rigid Base
Enclosure Drip Proof
Product Drawings1 141286.00.pdf
