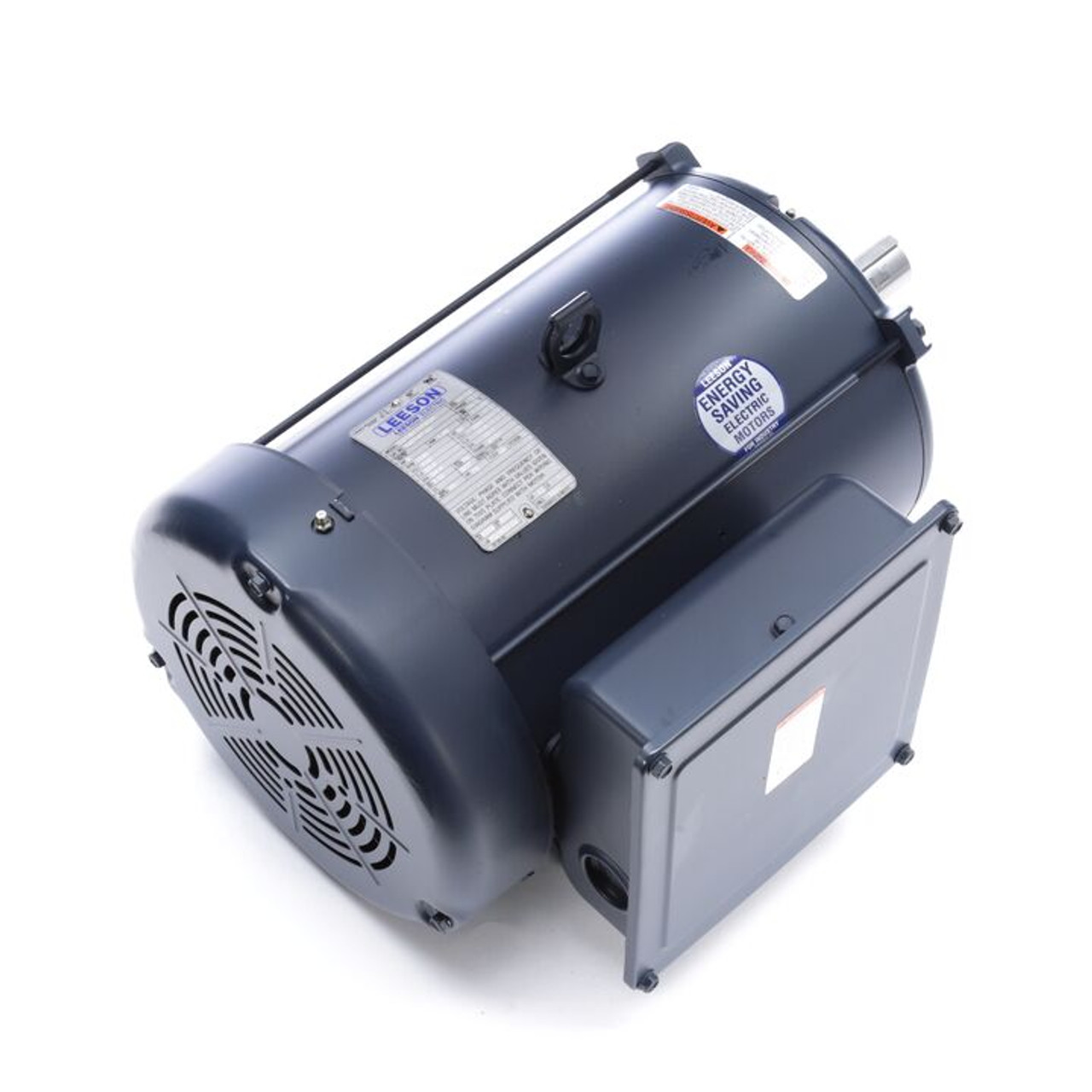

Product Description
Nameplate Specifications
| Phase: 1 | Output HP: 2 Hp |
| Output KW: 1.5 kW | Voltage: 115/208-230 V |
| Speed: 1140 rpm | Service Factor: 1.15 |
| Frame: 215T | Thermal Protection: No Protection |
| Efficiency: 77 % | Ambient Temperature: 40 °C |
| Frequency: 60 Hz | Current: 22.4/11.6-11.2 A |
| Power Factor: 75 | Duty: Continuous |
| Insulation Class: F | Design Code: L |
| KVA Code: J | Drive End Bearing Size: 6207 |
| Opp Drive End Bearing Size: 6206 | Enclosure: Totally Enclosed Fan Cooled |
| UL: Recognized | CSA: Y |
| CE: Y | IP Code: 43 |
| Number of Speeds: 1 |
Product Videos
Custom Field
Output HP 2 Hp
Output KW 1.5 kW
Voltage 115/208-230 V
Phase 1
Speed (RPM) 1140 rpm
Frame Size 215T
Mounting Rigid Base
Enclosure Totally Enclosed Fan Cooled
Product Drawings1 140747.00.pdf
