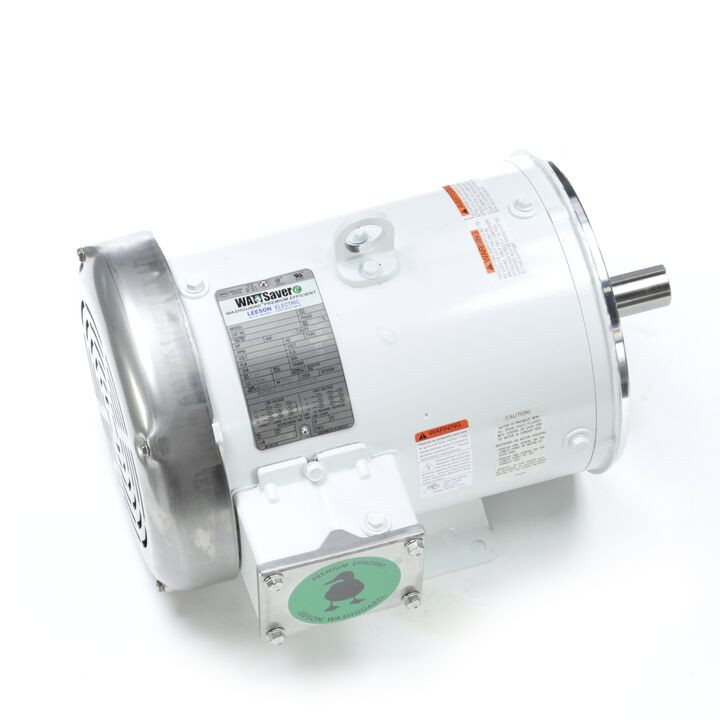

Product Description
Nameplate Specifications
| Phase: 3 | Output HP: 5 & 3 Hp |
| Output KW: 3.7 & 2.2 kW | Voltage: 230/460 & 190/380 V |
| Speed: 3515 & 2910 rpm | Service Factor: 1.15 & 1.15 |
| Frame: 184TC | Thermal Protection: No Protection |
| Efficiency: 88.5 & 88.5 % | Ambient Temperature: 40 °C |
| Frequency: 60 & 50 Hz | Current: 12/6 & 14/7 A |
| Power Factor: 89 | Duty: Continuous |
| Insulation Class: F | Design Code: B |
| KVA Code: K | Drive End Bearing Size: 6207 |
| Opp Drive End Bearing Size: 6205 | Enclosure: Totally Enclosed Fan Cooled |
| UL: Recognized | CSA: Y |
| CE: Y | IP Code: 55 |
| Number of Speeds: 1 |
Product Videos
Custom Field
Output HP 5 & 3 Hp
Output KW 3.7 & 2.2 kW
Voltage 230/460 & 190/380 V
Phase 3
Speed (RPM) 3515 & 2910 rpm
Frame Size 184TC
Mounting Rigid Base
Enclosure Totally Enclosed Fan Cooled
Product Drawings1 132200.00.pdf
