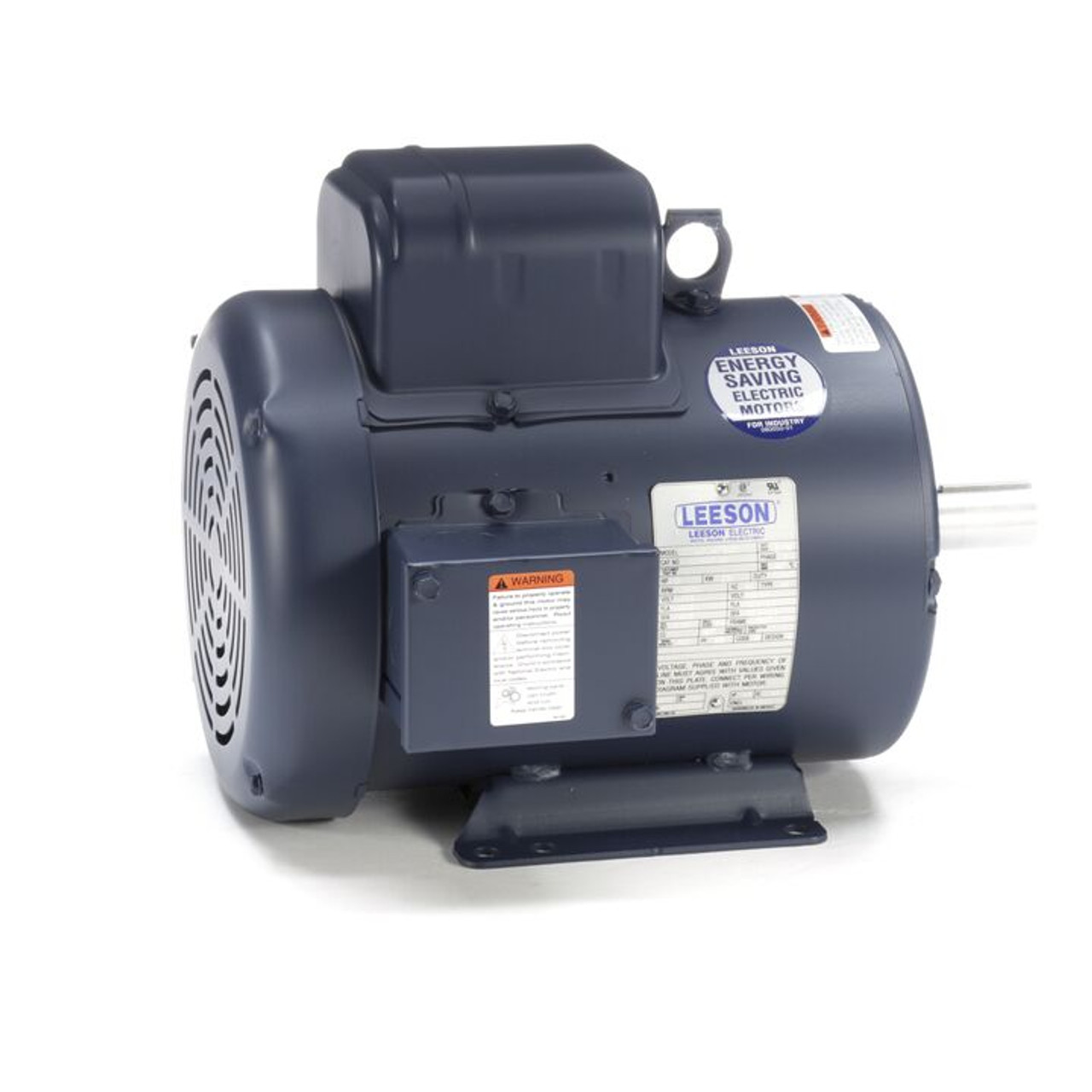

Product Description
Nameplate Specifications
| Phase: 1 | Output HP: 3 Hp |
| Output KW: 2.2 kW | Voltage: 115/208-230 V |
| Speed: 3500 rpm | Service Factor: 1.15 |
| Frame: 182T | Thermal Protection: No Protection |
| Efficiency: 80 % | Ambient Temperature: 40 °C |
| Frequency: 60 Hz | Current: 26.8/14.4-13.4 A |
| Power Factor: 89 | Duty: Continuous |
| Insulation Class: F | Design Code: L |
| KVA Code: G | Drive End Bearing Size: 6206 |
| Opp Drive End Bearing Size: 6205 | Enclosure: Totally Enclosed Fan Cooled |
| UL: Recognized | CSA: Y |
| CE: N | IP Code: 43 |
| Number of Speeds: 1 |
Product Videos
Custom Field
Output HP 3 Hp
Output KW 2.2 kW
Voltage 115/208-230 V
Phase 1
Speed (RPM) 3500 rpm
Frame Size 182T
Mounting Rigid Base
Enclosure Totally Enclosed Fan Cooled
Product Drawings1 131637.00.pdf
