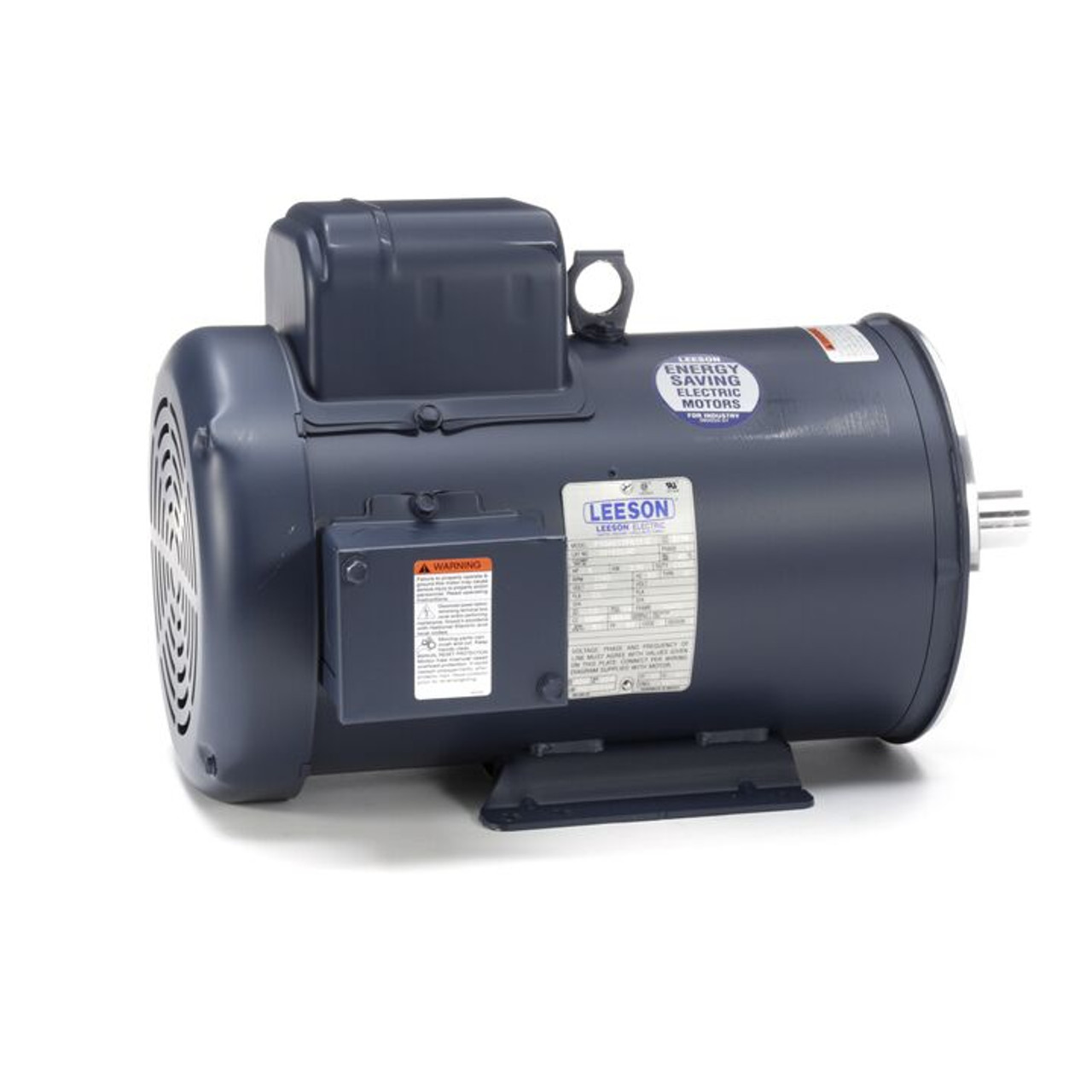

Product Description
Nameplate Specifications
| Phase: 1 | Output HP: 5 Hp |
| Output KW: 3.7 kW | Voltage: 230 V |
| Speed: 1740 rpm | Service Factor: 1 |
| Frame: 184TC | Thermal Protection: Manual |
| Efficiency: 81 % | Ambient Temperature: 40 °C |
| Frequency: 60 Hz | Current: 23 A |
| Power Factor: 92 | Duty: Continuous |
| Insulation Class: F | Design Code: L |
| KVA Code: H | Drive End Bearing Size: 6206 |
| Opp Drive End Bearing Size: 6205 | Enclosure: Totally Enclosed Fan Cooled |
| UL: Recognized | CSA: Y |
| CE: N | IP Code: 43 |
| Number of Speeds: 1 |
Product Videos
Custom Field
Output HP 5 Hp
Output KW 3.7 kW
Voltage 230 V
Phase 1
Speed (RPM) 1740 rpm
Frame Size 184TC
Mounting Rigid Base
Enclosure Totally Enclosed Fan Cooled
Product Drawings1 131633.00.pdf
