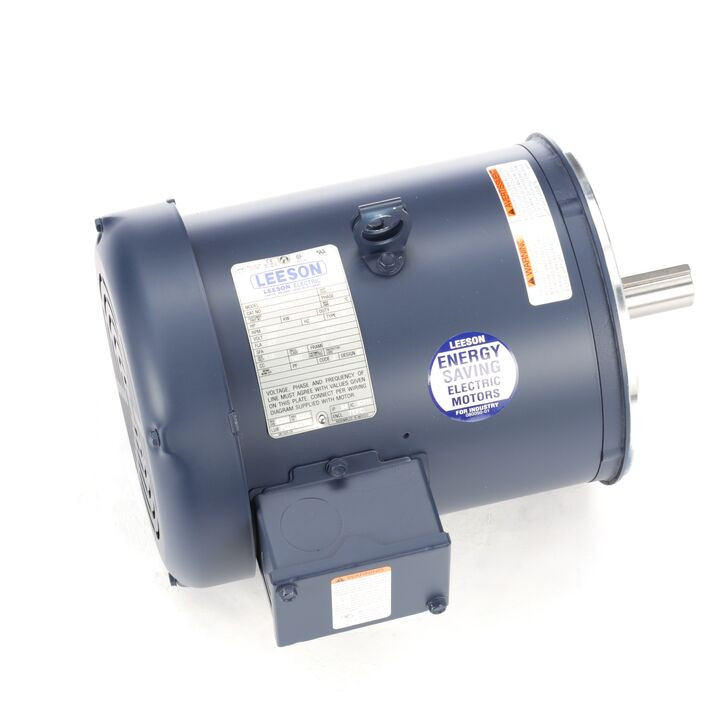

Product Description
Nameplate Specifications
| Phase | 3 | Output HP | 3 Hp |
| Output KW | 2.2 kW | Voltage | 220/380/440 V |
| Speed | 1425 rpm | Service Factor | 1.15 |
| Frame | 182TC | Thermal Protection | No Protection |
| Efficiency | 82.5 % | Ambient Temperature | 40 °C |
| Frequency | 50 Hz | Current | 8.2/4.7/4.1 A |
| Power Factor | 80.5 | Duty | Continuous |
| Insulation Class | F | Design Code | B |
| KVA Code | J | Drive End Bearing Size | 6206 |
| Opp Drive End Bearing Size | 6205 | Enclosure | Totally Enclosed Fan Cooled |
| UL | Recognized | CSA | Y |
| CE | Y | IP Code | 54 |
| Number of Speeds | 1 |
Product Videos
Custom Field
Output HP 3 Hp
Output KW 2.2 kW
Voltage 220/380/440 V
Phase 3
Speed (RPM) 1425 rpm
Frame Size 182TC
Mounting Round
Enclosure Totally Enclosed Fan Cooled
Product Drawings1 131506.00.pdf
