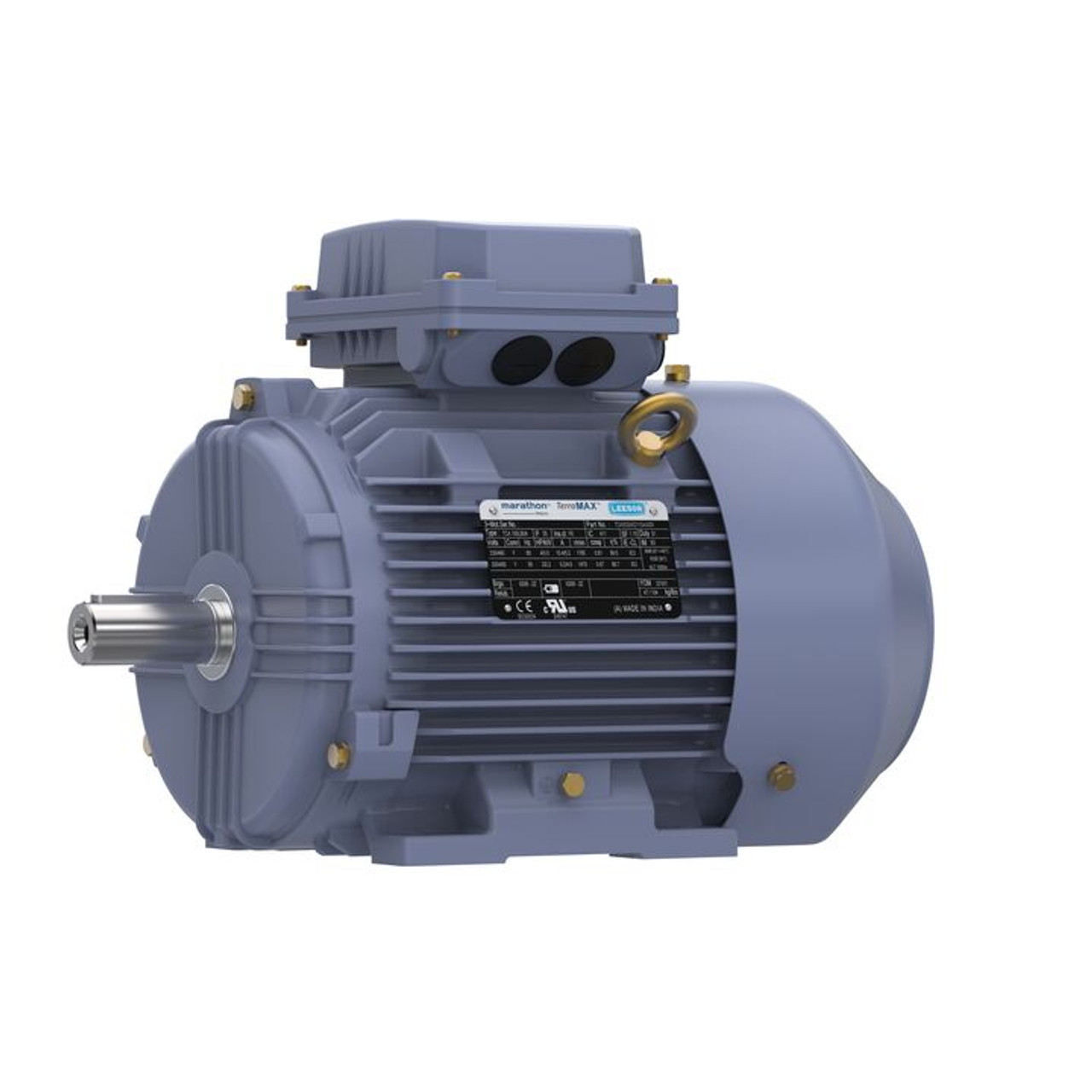

Product Description
Nameplate Specifications
| Phase: 3 | Output HP: 10 & 7.50 Hp |
| Output KW: 7.5 & 5.6 kW | Voltage: 230/460 & 200/400 V |
| Speed: 3540 & 2950 rpm | Service Factor: 1.15 & 1.15 |
| Frame: 132S | Thermal Protection: No Protection |
| Efficiency: 90.2 & 89.2 % | Ambient Temperature: 40 °C |
| Frequency: 60 & 50 Hz | Current: 23.8/11.9 & 21/10.5 A |
| Power Factor: 88 | Duty: Continuous |
| Insulation Class: F | Design Code: N (IEC) |
| KVA Code: J | Drive End Bearing Size: 6308 |
| Opp Drive End Bearing Size: 6208 | Enclosure: Totally Enclosed Fan Cooled |
| UL: Recognized | CSA: N |
| CE: Y | IP Code: 55 |
| Number of Speeds: 1 | Efficiency Class: IE3 |
Product Videos
Custom Field
Output HP 10 Hp
Output KW 7.5 kW
Voltage 230/460 V
Phase 3
Speed (RPM) 3540 rpm
Frame Size 132S
Mounting B35
Enclosure Totally Enclosed Fan Cooled
Product Drawings1 R830.pdf
