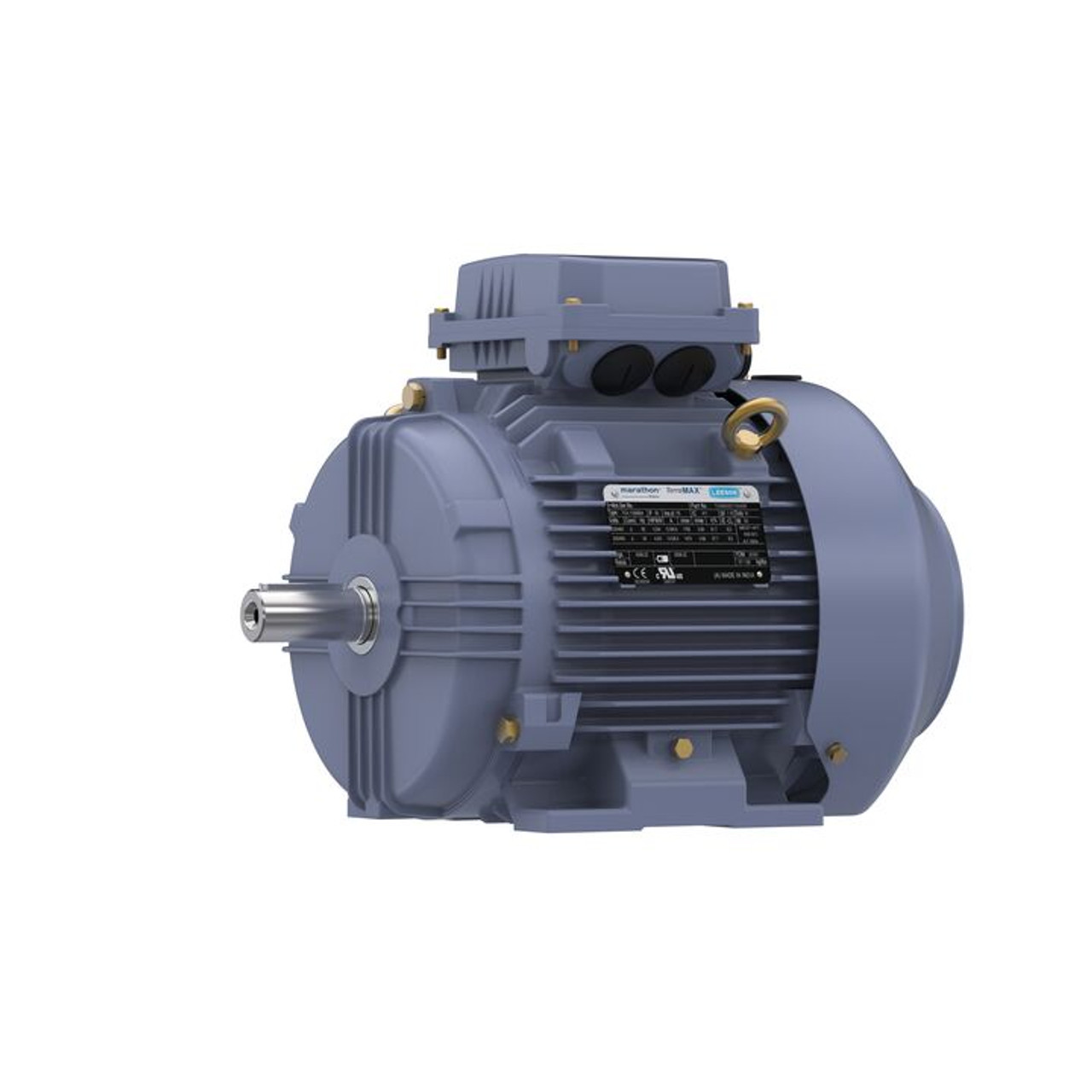

Product Description
Nameplate Specifications
| Phase: 3 | Output HP: 5.50 & 4 Hp |
| Output KW: 4.0 & 3.0 kW | Voltage: 230/460 & 200/400 V |
| Speed: 1765 & 1470 rpm | Service Factor: 1.15 & 1.15 |
| Frame: 112M | Thermal Protection: No Protection |
| Efficiency: 91.7 & 87.7 % | Ambient Temperature: 40 °C |
| Frequency: 60 & 50 Hz | Current: 13.8/6.9 & 13/6.5 A |
| Power Factor: 80 | Duty: Continuous |
| Insulation Class: F | Design Code: N (IEC) |
| KVA Code: M | Drive End Bearing Size: 6306 |
| Opp Drive End Bearing Size: 6206 | Enclosure: Totally Enclosed Fan Cooled |
| UL: Recognized | CSA: N |
| CE: Y | IP Code: 55 |
| Number of Speeds: 1 | Efficiency Class: IE3 |
Product Videos
Custom Field
Output HP 5.5 Hp
Output KW 4 kW
Voltage 230/460 V
Phase 3
Speed (RPM) 1765 rpm
Frame Size 112M
Mounting B3
Enclosure Totally Enclosed Fan Cooled
Product Drawings1 R325B.pdf
