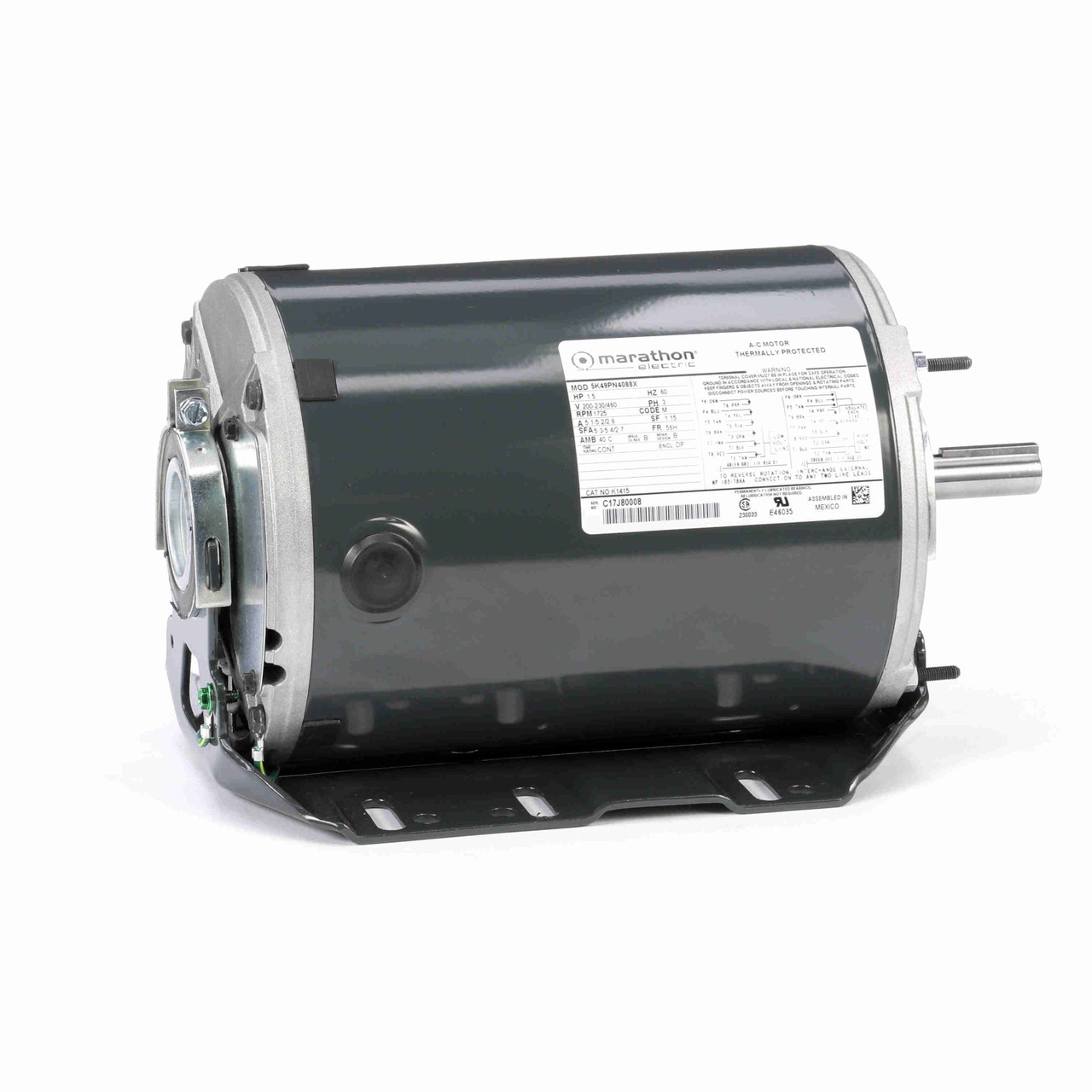

Product Description
Nameplate Specifications
| Phase: | 3 | Output HP: | 1.50 Hp |
| Output KW: | 1.1 kW | Voltage: | 200-230/460 V |
| Speed: | 1725 rpm | Service Factor: | 1.15 |
| Frame: | 56H | Enclosure: | Drip Proof |
| Thermal Protection: | Automatic | Efficiency: | 79.6 % |
| Ambient Temperature: | 40 °C | Frequency: | 60 Hz |
| Current: | 5.1-5.2,2.6 A | Power Factor: | 0 |
| Duty: | Continuous | Insulation Class: | B |
| Design Code: | B | KVA Code: | M |
| Drive End Bearing Size: | 6205 | Opp Drive End Bearing Size: | 6203 |
| UL: | Recognized | CSA: | Yes |
| CE: | N | Number of Speeds: | 1 |
Product Videos
Custom Field
Output HP 1.50 Hp
Output KW 1.1 kW
Voltage 200-230/460 V
Phase 3
Speed (RPM) 1725 rpm
Frame Size 56H
Mounting Resilient Base
Enclosure Drip Proof
Product Drawings1 K1415.pdf
