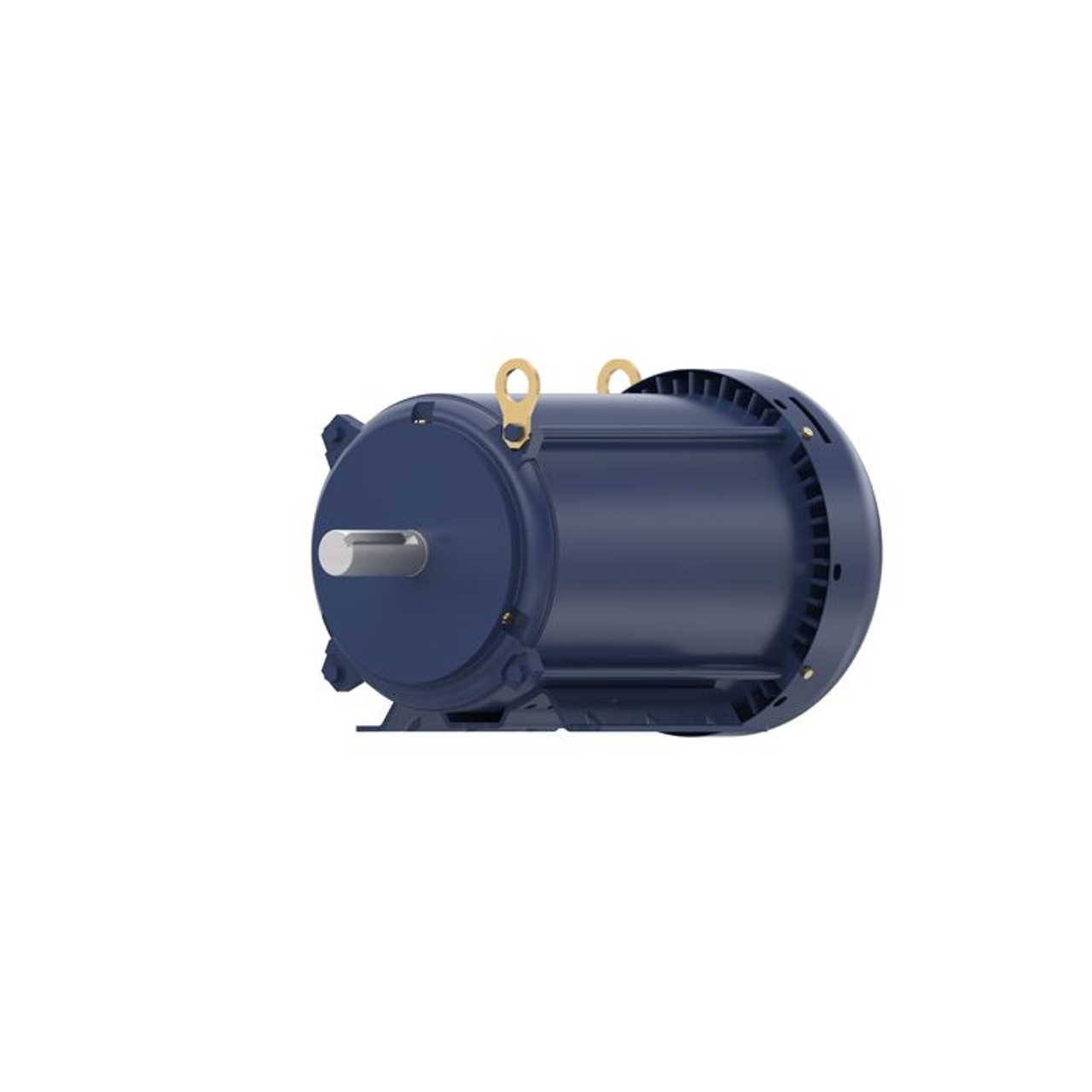

Product Description
Nameplate Specifications
| Phase: 3 | Output HP: 3 & 2 Hp |
| Output KW: 2.2 & 1.5 kW | Voltage: 230/460 & 190/380 V |
| Speed: 1185 & 987 rpm | Service Factor: 1.15 & 1.15 |
| Frame: 213T | Thermal Protection: No Protection |
| Efficiency: 89.5 & 89 % | Ambient Temperature: 40 °C |
| Frequency: 60 & 50 Hz | Current: 8.6/4.3 & 7.4/3.7 A |
| Power Factor: 73 | Duty: Continuous |
| Insulation Class: F | Design Code: B |
| KVA Code: J | Drive End Bearing Size: 6307 |
| Opp Drive End Bearing Size: 6206 | Enclosure: Totally Enclosed Fan Cooled |
| UL: Listed | CSA: Y |
| CE: Y | IP Code: 43 |
| Number of Speeds: 1 | Hazardous Location: DIVISION 2 T2B |
Product Videos
Custom Field
Output HP 3 Hp
Output KW 2.2 kW
Voltage 230/460 V
Phase 3
Speed (RPM) 1185 rpm
Frame Size 213T
Mounting Rigid Base
Enclosure Totally Enclosed Fan Cooled
Product Drawings1 GT1511.pdf
