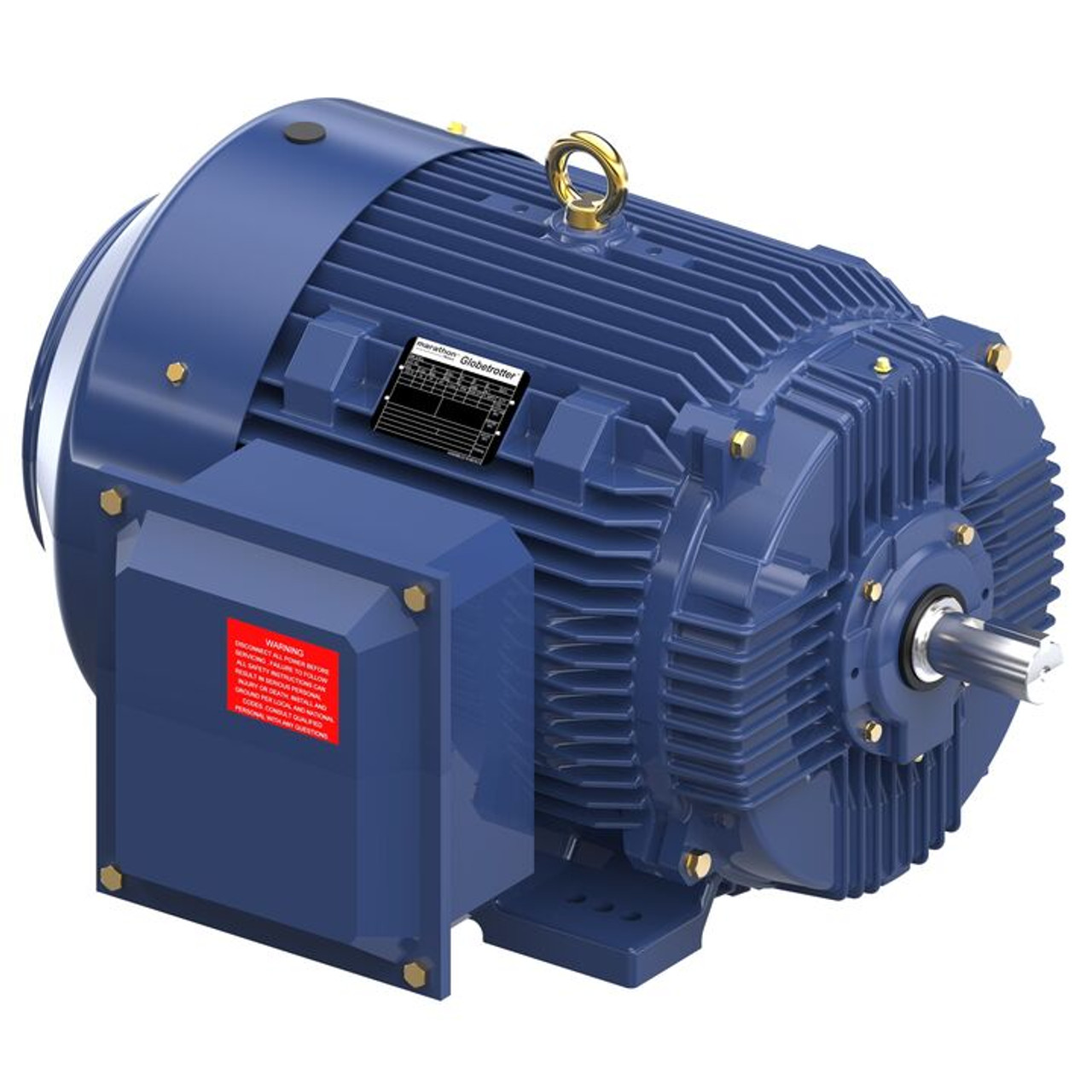

Product Description
Nameplate Specifications
| Phase: 3 | Output HP: 75 & 60 Hp |
| Output KW: 56.0 & 45.0 kW | Voltage: 230/460 & 190/380 V |
| Speed: 1780 & 1485 rpm | Service Factor: 1.15 & 1.15 |
| Frame: 365TS | Thermal Protection: No Protection |
| Efficiency: 95.5 & 94.8 % | Ambient Temperature: 40 °C |
| Frequency: 60 & 50 Hz | Current: 170/85 & 164/82 A |
| Power Factor: 87.5 | Duty: Continuous |
| Insulation Class: F | Design Code: B |
| KVA Code: G | Drive End Bearing Size: 6313 |
| Opp Drive End Bearing Size: 6213 | Enclosure: Totally Enclosed Fan Cooled |
| UL: Listed | CSA: Y |
| CE: Y | IP Code: 55 |
| Number of Speeds: 1 | Hazardous Location: DIVISION 2 T2B |
Product Videos
Custom Field
Output HP 75 Hp
Output KW 56 kW
Voltage 230/460 V
Phase 3
Speed (RPM) 1780 rpm
Frame Size 365TS
Mounting Rigid Base
Enclosure Totally Enclosed Fan Cooled
Product Drawings1 GT1062.pdf
