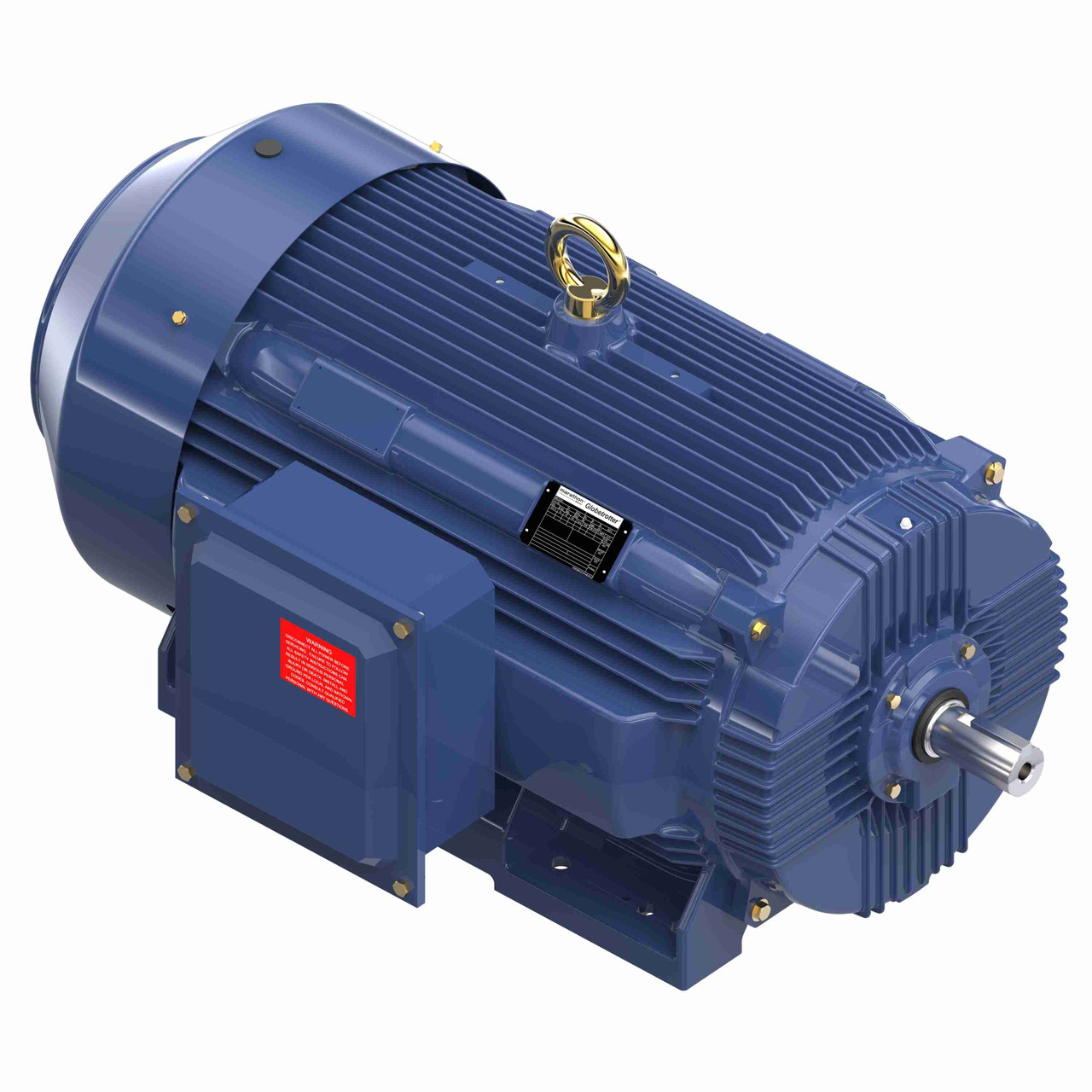

Product Description
Nameplate Specifications
| Phase: | 3 | Output HP: | 200 & 150 Hp |
| Output KW: | 149.0 & 112.0 kW | Voltage: | 460 & 380 V |
| Speed: | 3580 & 2982 rpm | Service Factor: | 1.15 & 1.15 |
| Frame: | 447TS | Enclosure: | Totally Enclosed Fan Cooled |
| Thermal Protection: | No Protection | Efficiency: | 95.4 & 95.4 % |
| Ambient Temperature: | 40 °C | Frequency: | 60 & 50 Hz |
| Current: | 217 & 197 A | Power Factor: | 90.5 |
| Duty: | Continuous | Insulation Class: | F |
| Design Code: | A | KVA Code: | H |
| Drive End Bearing Size: | 6314 | Opp Drive End Bearing Size: | 6314 |
| UL: | Listed | CSA: | Y |
| CE: | Y | IP Code: | 55 |
| Number of Speeds: | 1 | Hazardous Location: | DIVISION 2 T2B |
Product Videos
Custom Field
Output HP 200 & 150 Hp
Output KW 149.0 & 112.0 kW
Voltage 460 & 380 V
Phase 3
Speed (RPM) 3580 & 2982 rpm
Frame Size 447TS
Mounting Rigid Base
Enclosure Totally Enclosed Fan Cooled
Product Drawings1 GT1054A.pdf
