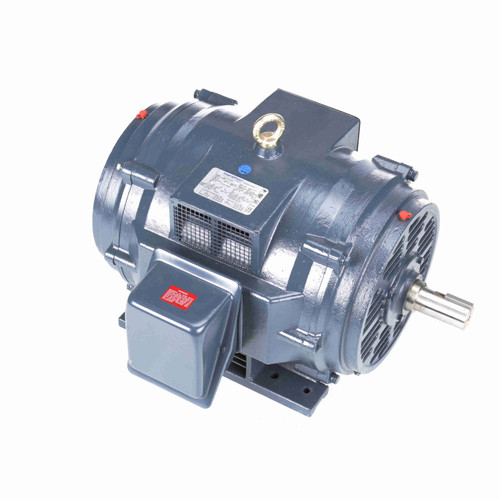

Product Description
Nameplate Specifications
| Phase: | 3 | Output HP: | 60 & 50 Hp |
| Output KW: | 45.0 & 37.0 kW | Voltage: | 208-230/460 & 190/380 V |
| Speed: | 1785 & 1485 rpm | Service Factor: | 1.15 & 1.15 |
| Frame: | 364TS | Enclosure: | Drip Proof |
| Thermal Protection: | No Protection | Efficiency: | 95 & 94.2 % |
| Ambient Temperature: | 40 °C | Frequency: | 60 & 50 Hz |
| Current: | 153-138/69 & 139/69.5 A | Power Factor: | 86.2 |
| Duty: | Continuous | Insulation Class: | F |
| Design Code: | B | KVA Code: | G |
| Drive End Bearing Size: | 6314 | Opp Drive End Bearing Size: | 6313 |
| UL: | Recognized | CSA: | Y |
| CE: | Y | IP Code: | 22 |
| Number of Speeds: | 1 |
Product Videos
Custom Field
Output HP 60 & 50 Hp
Output KW 45.0 & 37.0 kW
Voltage 208-230/460 & 190/380 V
Phase 3
Speed (RPM) 1785 & 1485 rpm
Frame Size 364TS
Mounting Rigid Base
Enclosure Drip Proof
Product Drawings1 GT0082.pdf
