Product Description

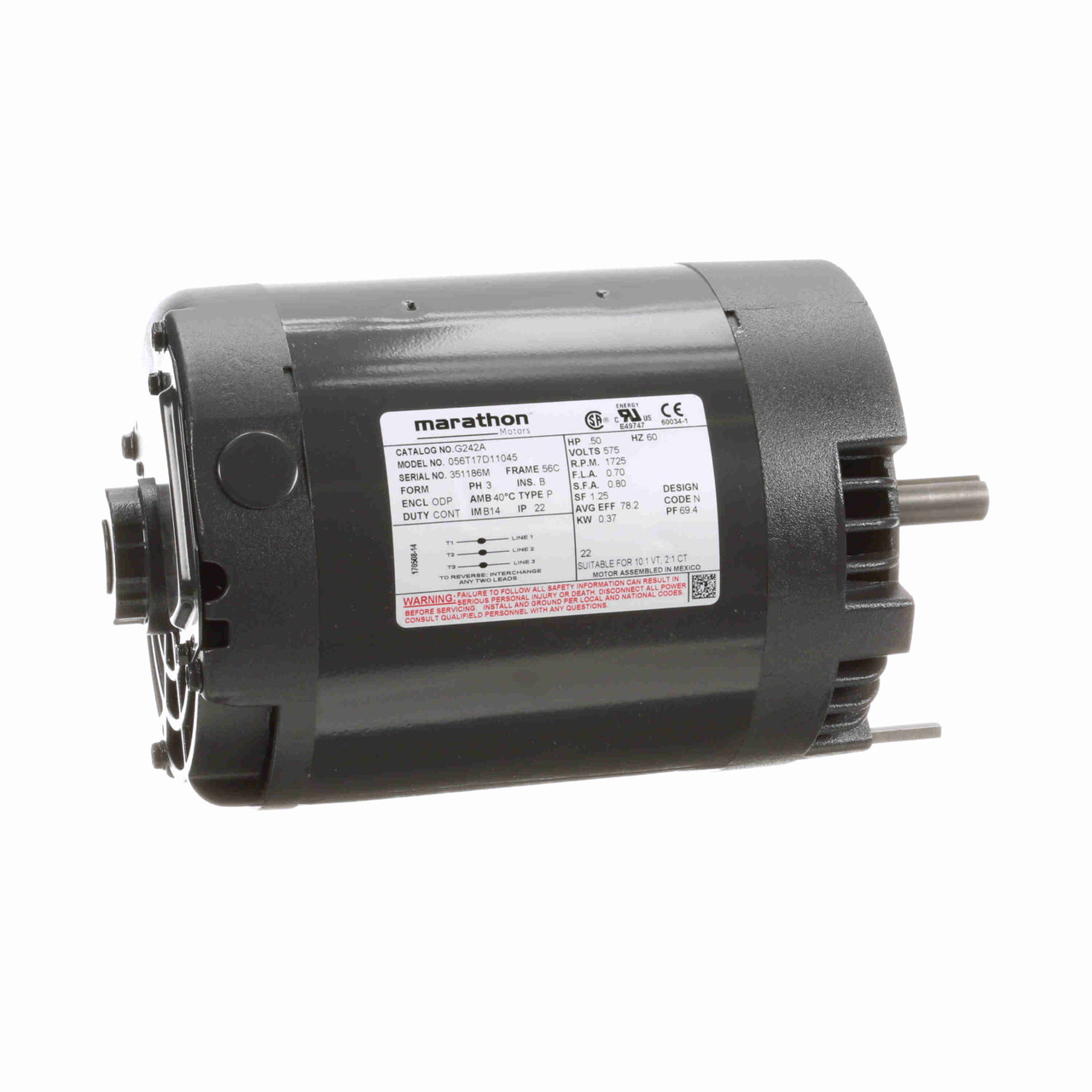

Nameplate Specifications
| Phase: | 3 | Output HP: | 0.50 Hp |
| Output KW: | 0.37 kW | Voltage: | 575 V |
| Speed: | 1725 rpm | Service Factor: | 1.25 |
| Frame: | 56C | Enclosure: | Drip Proof |
| Thermal Protection: | No Protection | Efficiency: | 78.2 % |
| Ambient Temperature: | 40 °C | Frequency: | 60 Hz |
| Current: | 0.70 A | Power Factor: | 55.5 |
| Duty: | Continuous | Insulation Class: | B |
| Design Code: | B | KVA Code: | K |
| Drive End Bearing Size: | 6203 | Opp Drive End Bearing Size: | 6203 |
| UL: | Recognized | CSA: | Y |
| CE: | Y | IP Code: | 22 |
| Number of Speeds: | 1 |
Product Videos
Custom Field
Output HP 0.50 Hp
Output KW 0.37 kW
Voltage 575 V
Phase 3
Speed (RPM) 1725 rpm
Frame Size 56C
Mounting C-Face Footless
Enclosure Drip Proof
Product Drawings1 4684.pdf
