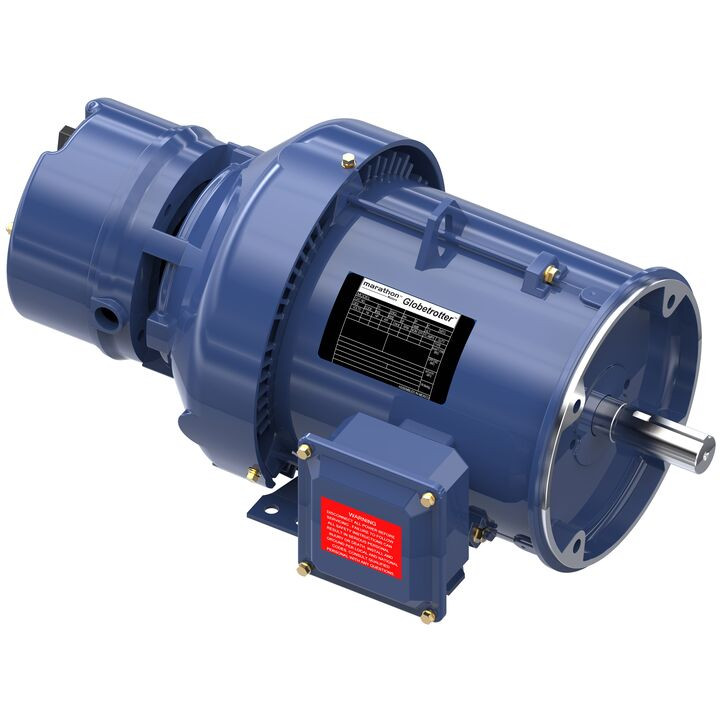

Product Description
Nameplate Specifications
| Phase: 3 | Output HP: 3 & 2 Hp |
| Output KW: 2.2 & 1.5 kW | Voltage: 230/460 & 190/380 V |
| Speed: 1762 & 1468 rpm | Service Factor: 1.15 & 1.15 |
| Frame: 182TC | Thermal Protection: No Protection |
| Efficiency: 89.5 & 85.5 % | Ambient Temperature: 40 °C |
| Frequency: 60 & 50 Hz | Current: 8.3/4.15 & 6.8/3.4 A |
| Power Factor: 78 | Duty: Continuous |
| Insulation Class: F | Design Code: A |
| KVA Code: L | Drive End Bearing Size: 6206 |
| Opp Drive End Bearing Size: 6205 | Enclosure: Totally Enclosed Fan Cooled |
| UL: Recognized | CSA: Y |
| CE: Y | IP Code: 43 |
| Number of Speeds: 1 |
Product Videos
Custom Field
Output HP 3 Hp
Output KW 2.2 kW
Voltage 230/460 V
Phase 3
Speed (RPM) 1762 rpm
Frame Size 182TC
Mounting Rigid Base
Enclosure Totally Enclosed Fan Cooled
Product Drawings1 C409.pdf
